GMC4022 Gantry Milling Machine — Designed to Meet the Needs of Large Mold Processing
Brand:ALLES CNC
Model:ALGMC4022
Host Dimensions:10300×5700×4900
Price:$225,000(Standard Edition)/$230,000(Pro Edition)
Availability:400 pieces of inventory available for sale every month
Certification:Meeting CE Standards in Terms of Quality & Safety
One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)Payment Method:T/T/ Credit Cards
Model:ALGMC4022
Host Dimensions:10300×5700×4900
Price:$225,000(Standard Edition)/$230,000(Pro Edition)
Availability:400 pieces of inventory available for sale every month
Certification:Meeting CE Standards in Terms of Quality & Safety
One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)Payment Method:T/T/ Credit Cards
Product Description

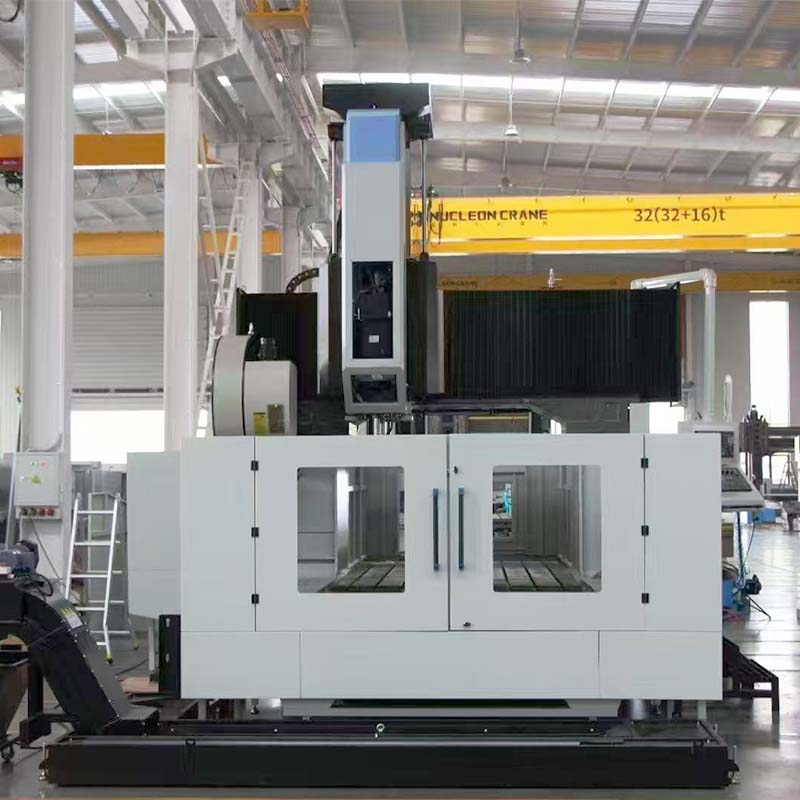

CNC Gantry Milling Machine GMC4022 Equipment Introduction
The GMC4022 Gantry Milling Machine is a high-performance CNC machine designed specifically for machining large molds, complex structural components, and high-strength metal parts. The machine adopts a high-rigidity integral gantry frame structure, combined with an advanced CNC control system and high-precision transmission components, ensuring excellent machining accuracy and stability even under heavy cutting loads and long-term continuous operation.
With its rigid structure, precise transmission, and intelligent control, the GMC4022 delivers both powerful cutting capability and high-precision machining performance, making it an ideal choice for large workpieces and mold processing. Whether in heavy-duty cutting, high-accuracy machining, or extended continuous production, the GMC4022 consistently demonstrates outstanding reliability and machining performance.
Opcional
1. Gear spindle structure (special instructions are required when ordering).
2.Right-angle milling head: manual right-angle milling head (special instructions are required when ordering).
3.30, 40 disc or chain tool magazines (special instructions are required when ordering).
4.Water comes out from the center of the spindle.
5.The fourth axis and the fifth axis.
6.It can be customized according to customer needs for heightening and widening (special instructions are required when ordering).
Equipment Advantages and Features
Advantages
High-rigidity structural design – strong vibration resistance, long life, and long-lasting precision;
Long-stroke machining capability – meets the needs of single-clamping machining of extremely large workpieces;
High-precision transmission system – positioning accuracy reaches ±0.005mm;
Multi-functional integration – milling, drilling, and tapping are completed in one operation;
High-efficiency automation – integrated with the ATC system enables unmanned machining.
Features
Long-stroke design: easily meets the machining needs of large parts and molds.
High-rigidity structure: Utilizes a high-strength cast iron bed and gantry crossbeam design for strong vibration resistance and stable and reliable machining.
High-precision spindle: Equipped with a high-speed, high-torque spindle system, it is suitable for both roughing and finishing.
Intelligent CNC system: Supports control systems from multiple brands (such as FANUC, Siemens, and GSK), offering easy operation and stable performance.
Multi-functional machining: Capable of performing multiple processes such as milling, drilling, tapping, and boring, a single machine improves production efficiency.
Application Industries of CNC Gantry Milling Machine GMC4022
1. Mold Manufacturing Industry
Suitable for machining large mold components such as automotive molds, injection molds, stamping molds, and die-casting molds.The GMC4022 can easily complete high-precision milling and drilling of complex surfaces such as mold bases, cavities, and cores.
2. Automotive and Machinery Manufacturing Industry
Used for rough and finish machining of structural parts such as engine housings, frames, slides, machine bases, and bearing seats.Its high-rigidity structure ensures dimensional accuracy and excellent surface quality even under heavy cutting conditions.
3. Aerospace Industry
Ideal for machining aircraft structural components, wing parts, support frames, mold fixtures, and other high-strength alloy materials.Supports multi-axis linkage and complex contour machining to meet the precision requirements of aerospace components.
4. Energy and Power Equipment Industry
Widely used for machining wind turbine shafts, generator housings, turbine components, and petroleum machinery parts.Capable of multi-face machining of large-size workpieces in a single setup, significantly improving production efficiency.
5. Rail Transit and Construction Machinery Industry
Suitable for machining locomotive chassis, rail components, and construction machinery arms, as well as large welded and cast parts.The GMC4022’s high-load worktable and powerful spindle meet the demands of heavy-duty part machining.
6. Military and Heavy Equipment Industry
Applied in machining armored vehicle parts, ship structures, and special equipment components made from high-strength steels and alloys.Ensures precise component matching and excellent surface flatness for critical applications.
GMC4022 CNC Gantry Milling Machine FAQs (Q&A)
1. What is the GMC4022 CNC Gantry Milling Machine?
The GMC4022 is a large CNC gantry milling machine designed specifically for machining large molds, mechanical components, and high-strength metal parts.
It utilizes a highly rigid, integral gantry frame structure, combined with a high-precision transmission system and intelligent CNC control, enabling high-precision, high-efficiency heavy-duty cutting.
2. What are the machining features of the GMC4022?
Large machining range: 4000mm X-axis, 2200mm Y-axis, and 1000mm Z-axis, suitable for extremely large workpieces.
High rigidity: The gantry structure is stable and highly shock-resistant.
High precision: Precision ball screws and linear guides are used on all three axes, achieving positioning accuracy of ±0.005mm.
Versatile: Supports multiple machining processes including milling, drilling, tapping, and boring, enabling multi-tasking in one machine.
High efficiency: Optional automatic tool changer (ATC) enables continuous machining and unmanned operation.
3. What industries is the GMC4022 suitable for? The GMC4022 is widely used in the following industries:
Mold manufacturing (automotive molds, injection molds, stamping molds, etc.)
Automotive and machinery manufacturing (engine housings, frames, slides, etc.)
Aerospace (machining of high-strength alloy structural parts)
Energy equipment (wind turbine main shafts, generator housings, turbine parts, etc.)
Engineering machinery and rail transportation (locomotive underframes, robotic booms, etc.)
Military and heavy equipment (ship parts, armored components, etc.)
4. What control system options are available for the GMC4022?
A variety of international mainstream CNC systems, including FANUC, Siemens, GSK, and KND, are available to meet customer needs.
These systems offer stable performance and easy operation, supporting complex surface and multi-axis machining to meet diverse process requirements.
5. Why choose the GMC4022?
Stable and Reliable: High-strength casting structure maintains long-term accuracy.
High-Precision Machining: Precision transmission system and intelligent compensation control.
Versatile: Suitable for a wide range of industries, including molds, machinery, and energy.
Cost-Effective: Excellent overall performance and easy maintenance make this a suitable long-term investment.
6. Customization Available?
Yes. We offer customized solutions based on workpiece size, machining type, and process requirements, including travel, spindle power, tool magazine capacity, and control system options, to meet diverse production needs.
The GMC4022 Gantry Milling Machine is a high-performance CNC machine designed specifically for machining large molds, complex structural components, and high-strength metal parts. The machine adopts a high-rigidity integral gantry frame structure, combined with an advanced CNC control system and high-precision transmission components, ensuring excellent machining accuracy and stability even under heavy cutting loads and long-term continuous operation.
With its rigid structure, precise transmission, and intelligent control, the GMC4022 delivers both powerful cutting capability and high-precision machining performance, making it an ideal choice for large workpieces and mold processing. Whether in heavy-duty cutting, high-accuracy machining, or extended continuous production, the GMC4022 consistently demonstrates outstanding reliability and machining performance.
Opcional
1. Gear spindle structure (special instructions are required when ordering).
2.Right-angle milling head: manual right-angle milling head (special instructions are required when ordering).
3.30, 40 disc or chain tool magazines (special instructions are required when ordering).
4.Water comes out from the center of the spindle.
5.The fourth axis and the fifth axis.
6.It can be customized according to customer needs for heightening and widening (special instructions are required when ordering).
Equipment Advantages and Features
Advantages
High-rigidity structural design – strong vibration resistance, long life, and long-lasting precision;
Long-stroke machining capability – meets the needs of single-clamping machining of extremely large workpieces;
High-precision transmission system – positioning accuracy reaches ±0.005mm;
Multi-functional integration – milling, drilling, and tapping are completed in one operation;
High-efficiency automation – integrated with the ATC system enables unmanned machining.
Features
Long-stroke design: easily meets the machining needs of large parts and molds.
High-rigidity structure: Utilizes a high-strength cast iron bed and gantry crossbeam design for strong vibration resistance and stable and reliable machining.
High-precision spindle: Equipped with a high-speed, high-torque spindle system, it is suitable for both roughing and finishing.
Intelligent CNC system: Supports control systems from multiple brands (such as FANUC, Siemens, and GSK), offering easy operation and stable performance.
Multi-functional machining: Capable of performing multiple processes such as milling, drilling, tapping, and boring, a single machine improves production efficiency.
| Workbench | |
| Working desk size | 4000 × 2000 mm |
| Workbench bearing | 13,000 Kg |
| T-slot width | 9–28 × 200 mm |
| Processing Range | |
| X-axis travel | 4000 mm |
| Y-axis travel | 2200 mm |
| Z-axis travel | 1000 mm |
| Spindle end face to table distance | 280–1280 mm |
| Gantry width | 2300 mm |
| Gantry height | 1400 mm |
| Spindle | |
| Taper hole model | BT50-200 |
| Pull stud specification | P50T-1-MAS403 (45°) |
| Rotation speed range | 10–6000 rpm |
| Feed | |
| Cutting feed speed range | 7 m/min |
| X-axis rapid movement | 12 m/min |
| Y-axis rapid movement | 12 m/min |
| Z-axis rapid movement | 8 m/min |
| System Configuration | |
| CNC System | Japan FANUC 1 pack |
| Host Dimensions & Weight | |
| Machine size (L × W × H) | 10300 × 5700 × 4900 mm |
| Machine weight | About 40 T |
Application Industries of CNC Gantry Milling Machine GMC4022
1. Mold Manufacturing Industry
Suitable for machining large mold components such as automotive molds, injection molds, stamping molds, and die-casting molds.The GMC4022 can easily complete high-precision milling and drilling of complex surfaces such as mold bases, cavities, and cores.
2. Automotive and Machinery Manufacturing Industry
Used for rough and finish machining of structural parts such as engine housings, frames, slides, machine bases, and bearing seats.Its high-rigidity structure ensures dimensional accuracy and excellent surface quality even under heavy cutting conditions.
3. Aerospace Industry
Ideal for machining aircraft structural components, wing parts, support frames, mold fixtures, and other high-strength alloy materials.Supports multi-axis linkage and complex contour machining to meet the precision requirements of aerospace components.
4. Energy and Power Equipment Industry
Widely used for machining wind turbine shafts, generator housings, turbine components, and petroleum machinery parts.Capable of multi-face machining of large-size workpieces in a single setup, significantly improving production efficiency.
5. Rail Transit and Construction Machinery Industry
Suitable for machining locomotive chassis, rail components, and construction machinery arms, as well as large welded and cast parts.The GMC4022’s high-load worktable and powerful spindle meet the demands of heavy-duty part machining.
6. Military and Heavy Equipment Industry
Applied in machining armored vehicle parts, ship structures, and special equipment components made from high-strength steels and alloys.Ensures precise component matching and excellent surface flatness for critical applications.
GMC4022 CNC Gantry Milling Machine FAQs (Q&A)
1. What is the GMC4022 CNC Gantry Milling Machine?
The GMC4022 is a large CNC gantry milling machine designed specifically for machining large molds, mechanical components, and high-strength metal parts.
It utilizes a highly rigid, integral gantry frame structure, combined with a high-precision transmission system and intelligent CNC control, enabling high-precision, high-efficiency heavy-duty cutting.
2. What are the machining features of the GMC4022?
Large machining range: 4000mm X-axis, 2200mm Y-axis, and 1000mm Z-axis, suitable for extremely large workpieces.
High rigidity: The gantry structure is stable and highly shock-resistant.
High precision: Precision ball screws and linear guides are used on all three axes, achieving positioning accuracy of ±0.005mm.
Versatile: Supports multiple machining processes including milling, drilling, tapping, and boring, enabling multi-tasking in one machine.
High efficiency: Optional automatic tool changer (ATC) enables continuous machining and unmanned operation.
3. What industries is the GMC4022 suitable for? The GMC4022 is widely used in the following industries:
Mold manufacturing (automotive molds, injection molds, stamping molds, etc.)
Automotive and machinery manufacturing (engine housings, frames, slides, etc.)
Aerospace (machining of high-strength alloy structural parts)
Energy equipment (wind turbine main shafts, generator housings, turbine parts, etc.)
Engineering machinery and rail transportation (locomotive underframes, robotic booms, etc.)
Military and heavy equipment (ship parts, armored components, etc.)
4. What control system options are available for the GMC4022?
A variety of international mainstream CNC systems, including FANUC, Siemens, GSK, and KND, are available to meet customer needs.
These systems offer stable performance and easy operation, supporting complex surface and multi-axis machining to meet diverse process requirements.
5. Why choose the GMC4022?
Stable and Reliable: High-strength casting structure maintains long-term accuracy.
High-Precision Machining: Precision transmission system and intelligent compensation control.
Versatile: Suitable for a wide range of industries, including molds, machinery, and energy.
Cost-Effective: Excellent overall performance and easy maintenance make this a suitable long-term investment.
6. Customization Available?
Yes. We offer customized solutions based on workpiece size, machining type, and process requirements, including travel, spindle power, tool magazine capacity, and control system options, to meet diverse production needs.
