Automatic CNC lathe CK0640
CNC lathe machine tool is a mechanical, electrical, hydraulic, pneumatic, microelectronics and information technology.
Product Description

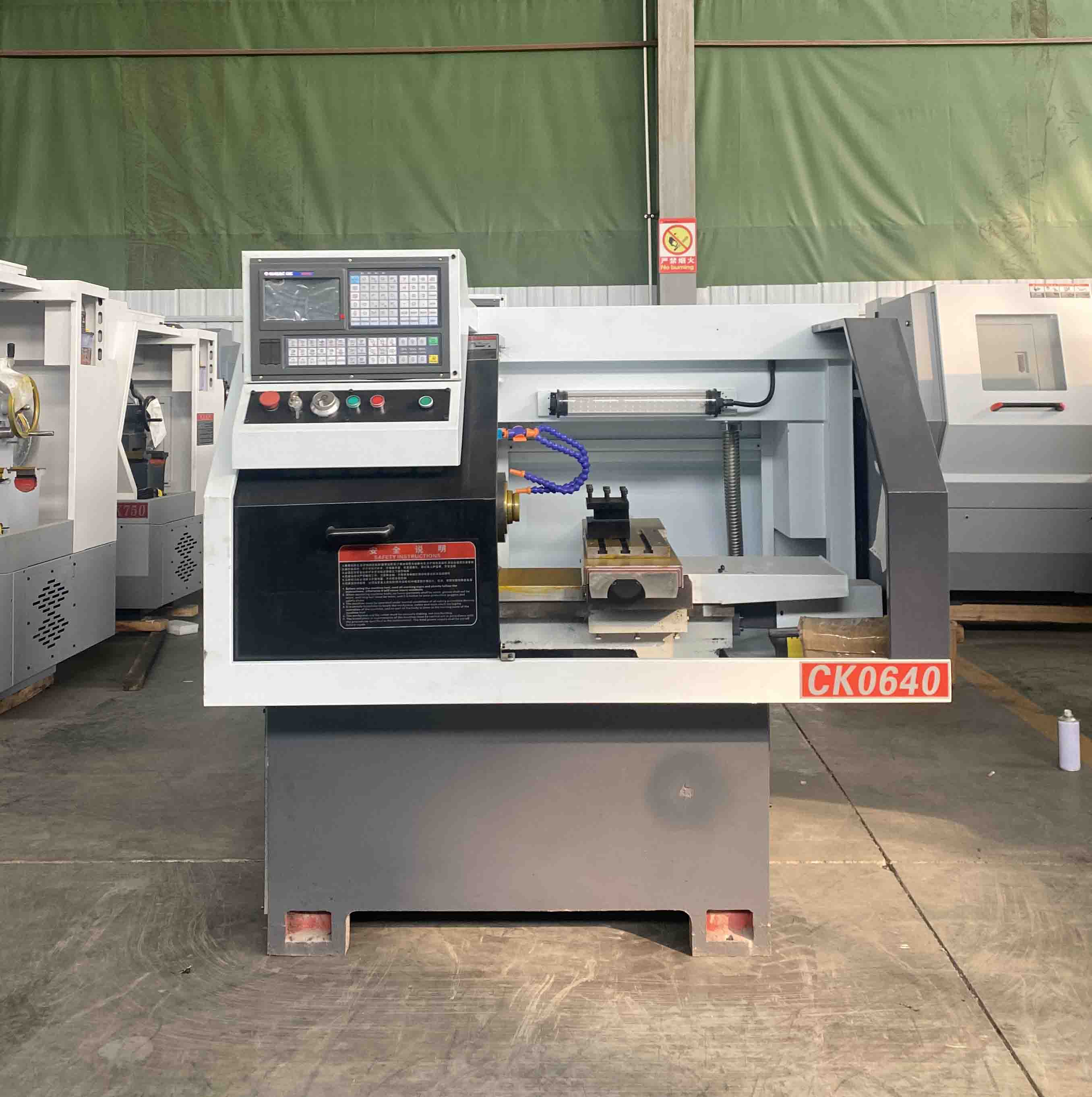

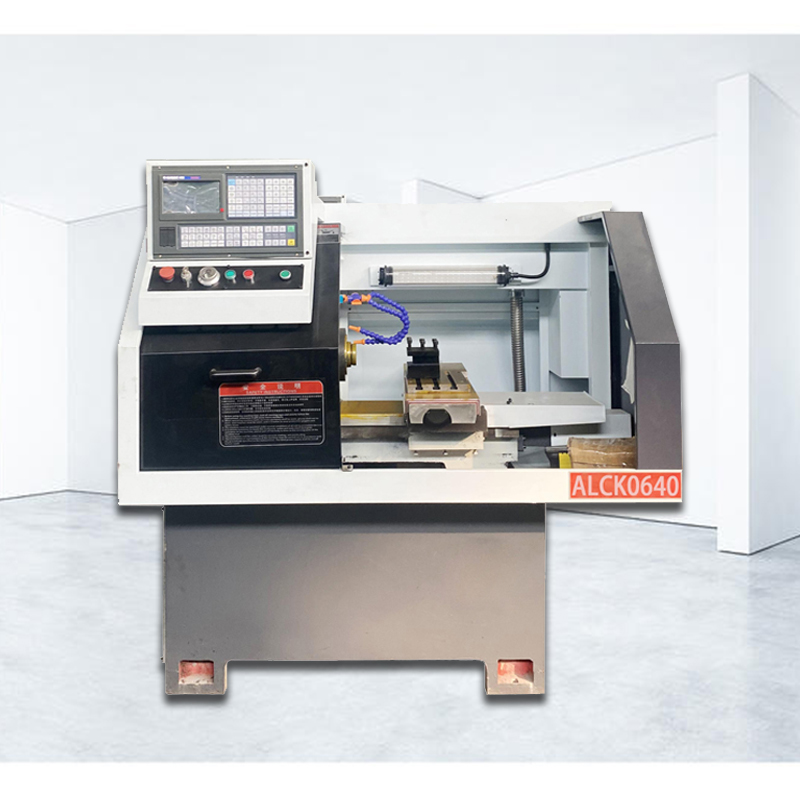

Automatic CNC lathe CK0640
CNC lathe machine tool is a mechanical, electrical, hydraulic, pneumatic, microelectronics and information technology. It is a master machine with high precision, high efficiency, high automation, high efficiency and high flexibility.
CNC lathe suitable for machine short shaft products, special suitable for processing plumbing, valves, sanitary ware, auto industry parts. This machine is suitable for processing all kinds of metal materials, various types of semi-finished accessories, for example bar, pipe material, casting, forging, casting parts and so on.
Video Display:
CNC Lathe advantage:
| Item | Unit | ALCK0640 |
| Max swing over bed | mm | Φ250 |
| X-axis motor torque | 4Nm | |
| Z-axis motor torque | 4Nm | |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| Tool post form | Row tool | |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| Clamping device | Pneumatic collet | |
| Knife square size | mm | 20×20 (four stations) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 200(Optional 300/400mm） |
| Z stroke | mm | 220 |
| Main motor power | KW | 3（Optional 4kw) |
| Tailstock | No tailstock | |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 800 |
| Dimensions (length × width × height) | mm | 1620×1340×1680mm |
Video Display:
Product Display:
