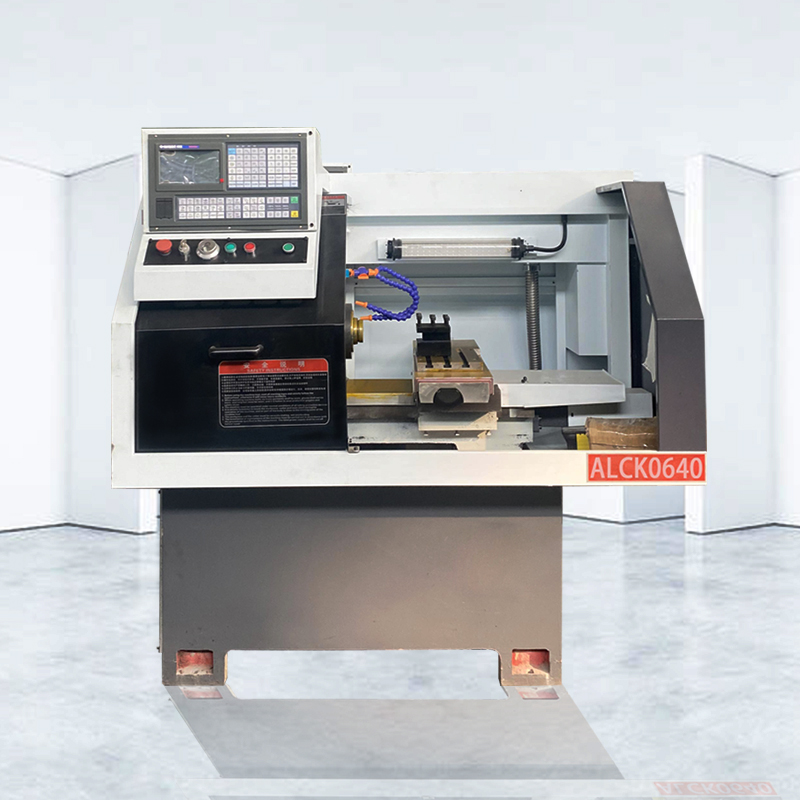

ALCK0640 CNC lathe machine
CNC Lathe ALCK0640
Max swing over bed: Φ250mm
Maximum swing over slide: 120mm
Spindle hole diameter: 48mm
Spindle speed limit: 3000rpm
Product Description
Super low price ALCK0640 CNC lathe machine
ALCK0640 CNC lathe machine has the advantages of high precision, high efficiency, high automation and high flexibility. CNC lathe machine in single-piece production and small batch production, cnc turning center processes complex-shaped parts. It not only improves labor productivity and processing quality. Moreover, the production preparation cycle is shortened and the requirements for the technical proficiency of workers are reduced.
| Item | Unit | ALCK0640 CNC lathe machine |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| X stroke | mm | 200(Optional 300/400mm） |
| Z stroke | mm | 220 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 800 |
| Dimensions (length × width × height) | mm | 1620×1340×1680 |
ALCK0640 CNC Lathe Machine Detailed Images

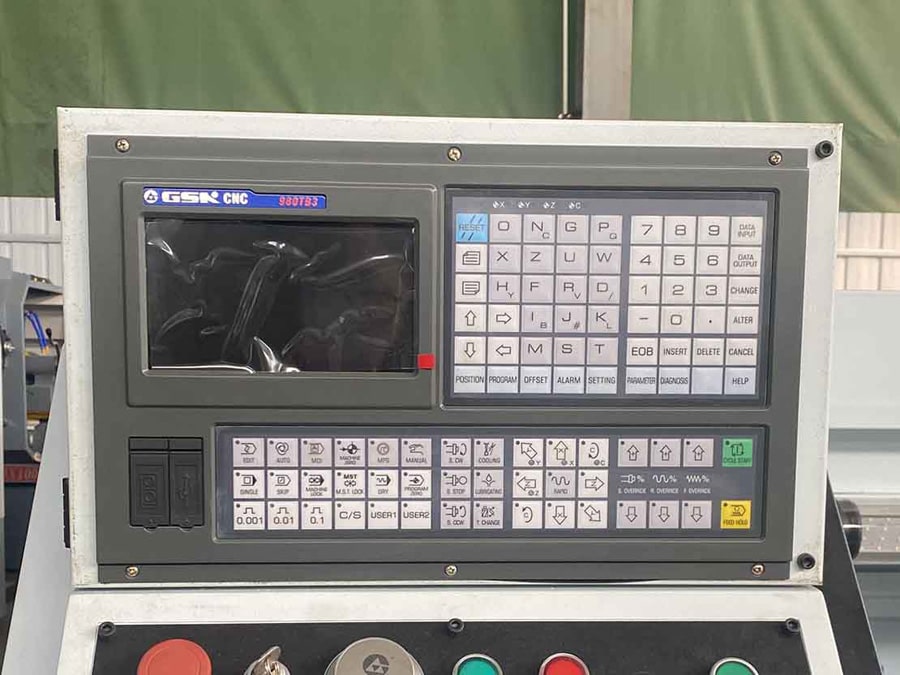

System: GSK, Siemens, Fanuc,KND(optional),servo motor and drive

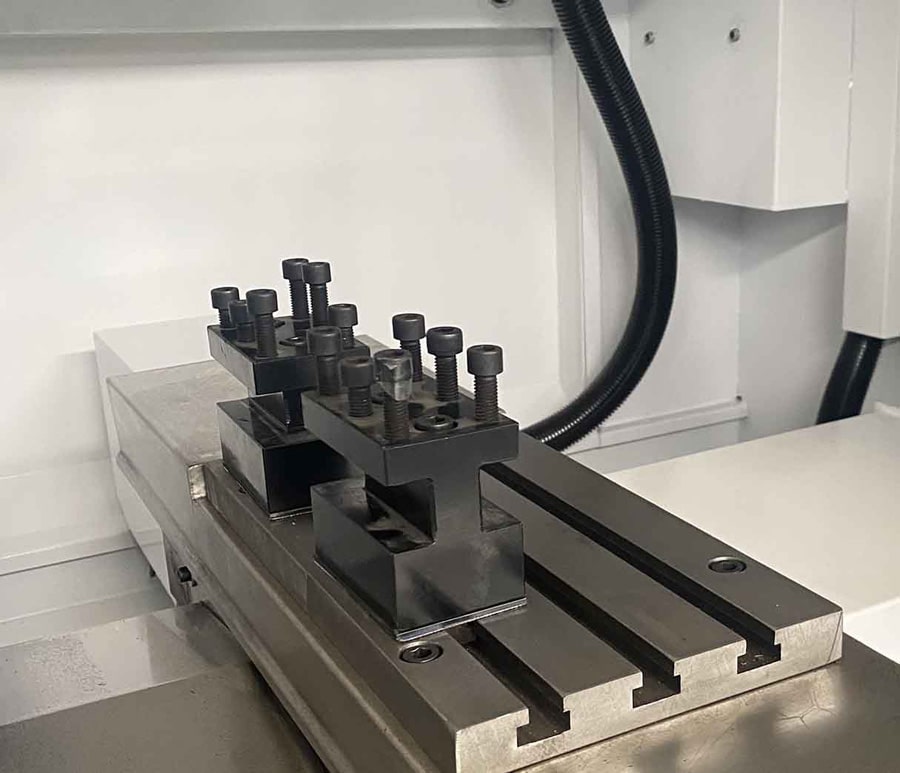

Tool holder, station electrical tool post, gang-type tool post(optional)
ALCK0640 CNC Lathe Machine Video
ALCK0640 CNC Lathe Machine Application Industry

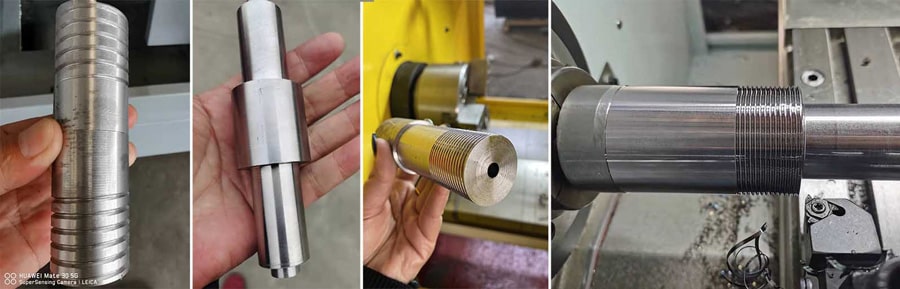

cnc turning center is mainly used for cutting inner and outer cylindrical surfaces of shaft parts or disc parts, inner and outer conical surfaces of arbitrary taper angles, complex rotating inner and outer surfaces, and cylindrical and conical threads, etc., and can perform grooving, drilling, and reaming , reaming and boring, etc.
