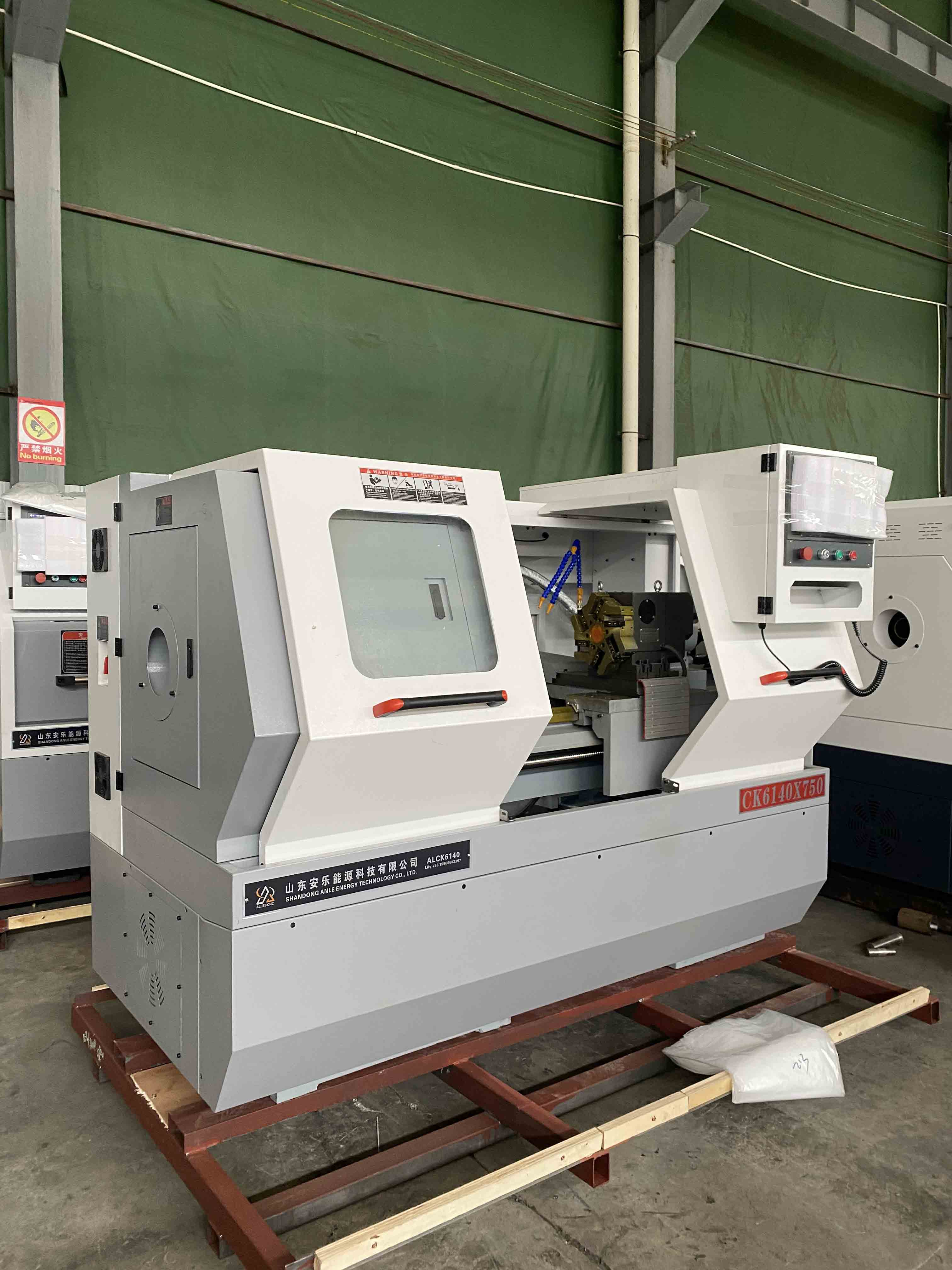

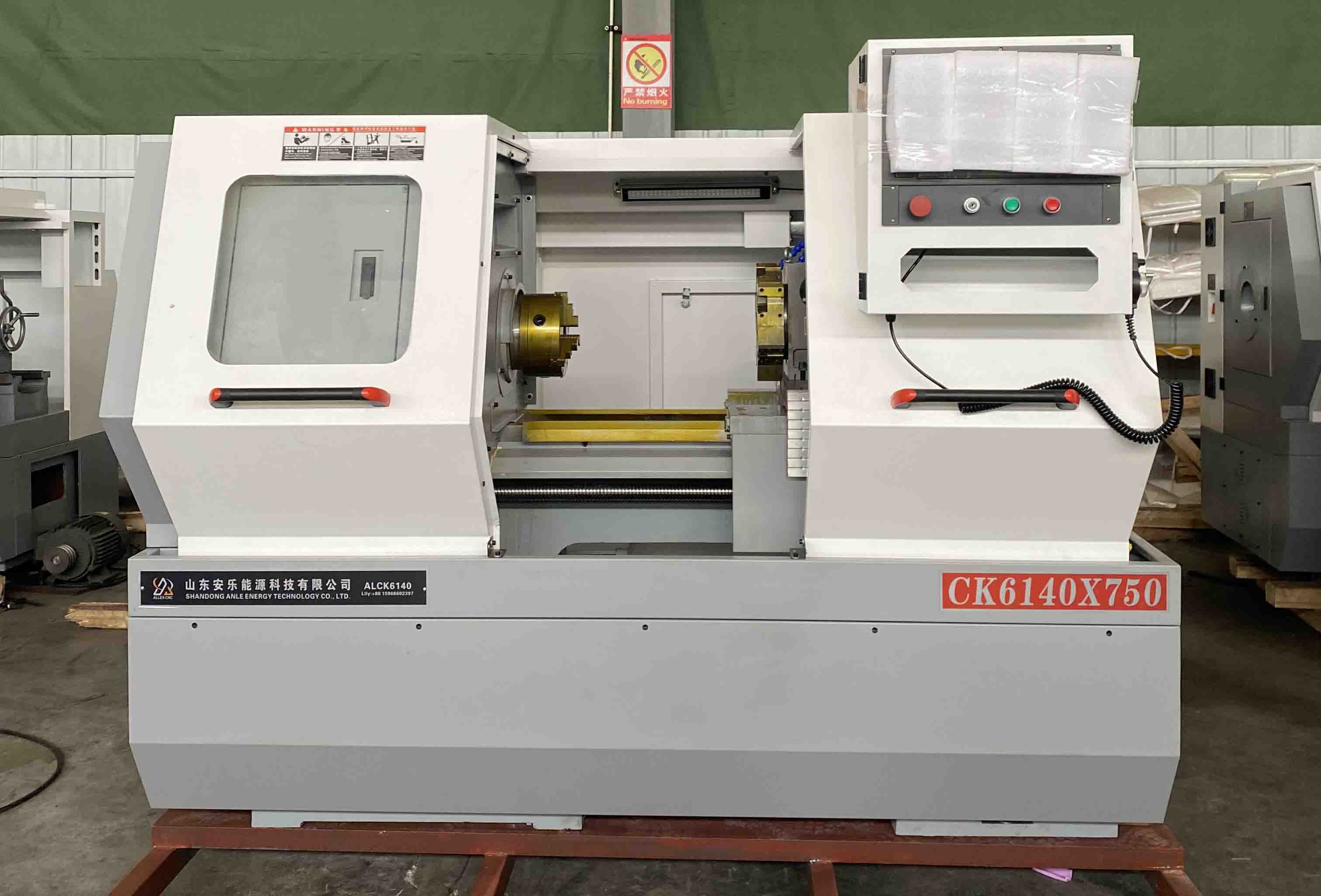

CK6140 small cnc teaching automatic lathe
CNC lathes can automatically complete the processing of inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, etc., and can also realize the turning of male, British and various other forms of single and multi-thread threads.
Product Description
CK6140 small cnc teaching automatic lathe
product description:Mini Lathe is a high precision CNC turning center equipped with CNC system, high precision ball screws, linear motor guides and linear tools. This model does all functions such as turning, threading, grooving, facing and chamfering without the need for a turret. It is more economical and reliable.
Video:
Product Specifications:

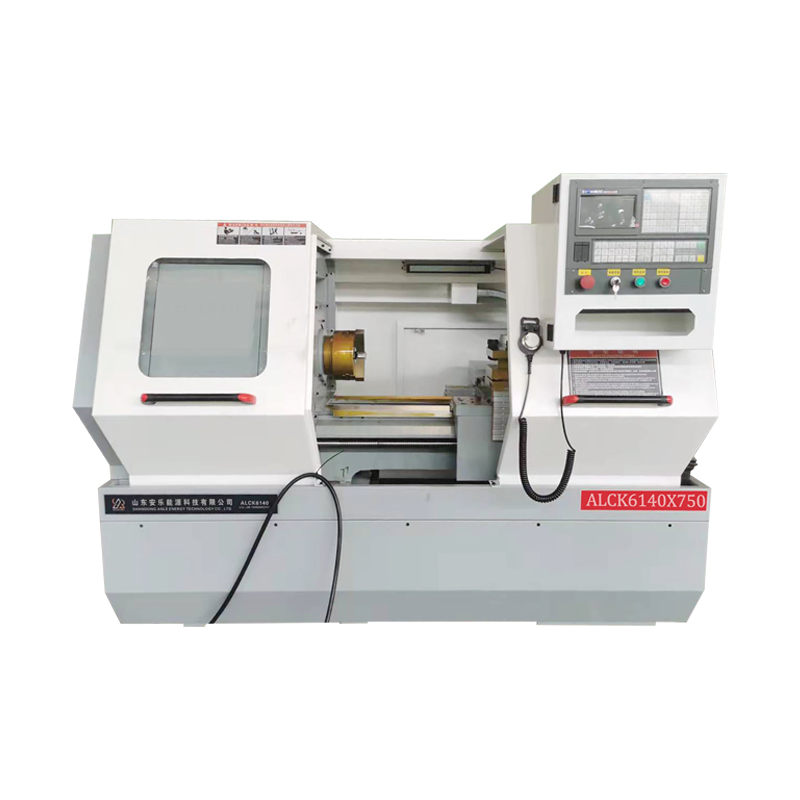

| Model | ALCK6140*750 | |
| Processing capacity | Maximum turning diameter of bed | 400mm |
| Maximum turning diameter on the tool post | 220mm | |
| Center distance | 750mm | |
| Rail width | 360mm | |
| X stroke | 250mm | |
| Z-stroke | 900mm | |
| Headstock | Spindle hole diameter | 52mm |
| Spindle speed range(number of stages) | Gear two-speed 50-1600rpm/single axis 2200rpm (optional) | |
| Skateboard | Fast moving speed of carriage | X/Z:5/8m/min |
| Repeatability | Z:0.013mm X:0.012mm | |
| Tailstock | Diameter of tailstock sleeve | 65mm |
| Maximum stroke of tailstock sleeve | 120mm | |
| Motor | Servo main motor power | 5.5KW |
| Cooling pump | 125W | |
| PACKING(L*W*H) | 2350*1400*1800mm | |
| WEIGHT(N.W/G.W) | 1550/1650kg | |
Product advantages:ALLES CNC has the knowledge and expertise to manufacture high quality CNC mini lathes to meet various needs in different industries. We are the leading company in the manufacture of the best and most affordable CNC Micro Lathes. The company is equipped with state-of-the-art machinery to manufacture high-quality CNC machine tools and other special-purpose machines.
