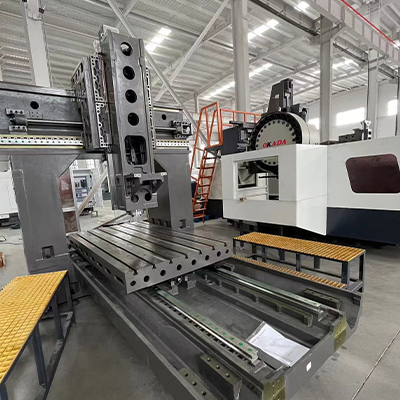

GMC2518 CNC Gantry Machining Center – Powerful Cutting, Effortlessly Handling Heavy-Duty Machining

The GMC2518 CNC Gantry Machining Center is a high-performance machine designed for large and heavy workpieces. With a worktable size of 2500×1500mm and a load capacity of 5000kg, it easily meets the demands of large structural components and mold machining. The X/Y/Z travel is 2500×1950×1000mm, equipped with a BT50-190 gear spindle that offers a speed range of 10–6000 rpm, enabling both powerful rough cutting and high-precision finishing. The rapid traverse rates of 15/15/10 m/min ensure efficient machining cycles. Featuring a rigid gantry structure with a width of 1800mm and height of 1300mm, combined with a high-power spindle motor and 38Nm/30Nm axis motors, the machine delivers excellent heavy-duty cutting capability and stability. With a total weight of about 27 tons, it provides superior vibration resistance and maintains precision during long-term intensive machining. With its large travel, high power, and robust structure, the GMC2518 is widely applied in mold manufacturing, aerospace, construction machinery, and large parts machining, offering enterprises both efficiency and high-quality results.
