CNC lathe machining parts

automatic cnc lathe compact overall layout and small footprint

Independent spindle unit, low temperature rise, stable machine tool accuracy, fast response, high precision, suitable for high-speed machining of non-ferrous metals such as copper, aluminum, stainless steel, and rigid work

Product Description

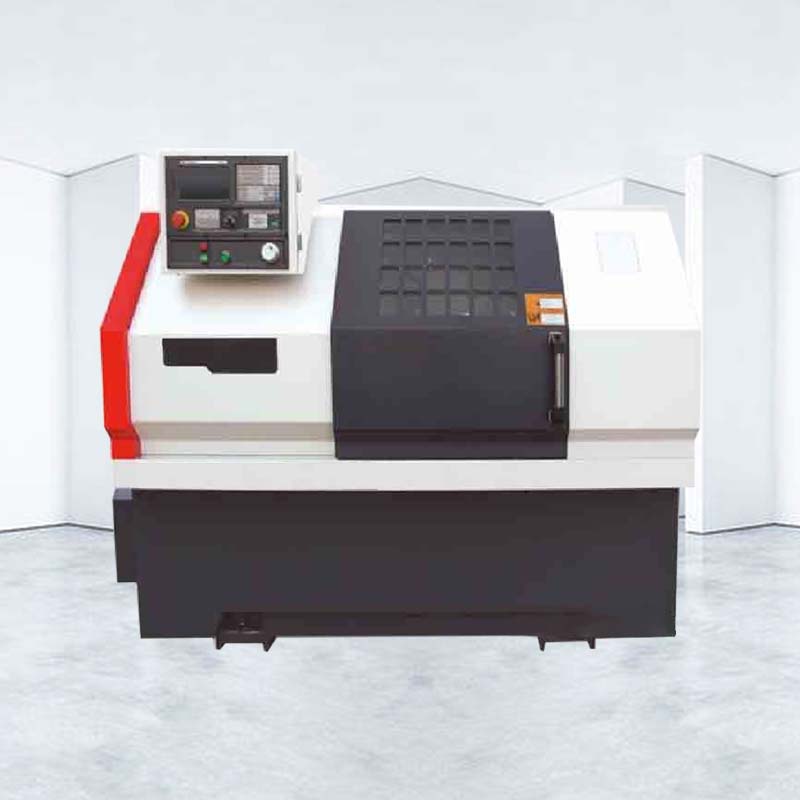

Super low price ALCK6160X1000 GSK980TB3 system With third-party driver Rail width 400 320 three-jaw manual self-centering chuck Four-station electric tool holder 7.5kw ordinary motor

Characteristics of CNC lathe for metal

1. It has multi-functional composite processing capabilities such as turning, boring, vertical milling, end milling, drilling, tapping, etc. It can quickly complete the processing of complex workpieces with high quality. Its flexibility is especially suitable for the processing of complex, multi-variety and small-batch parts. , the machine tool is powerful, and can provide production-type turning and milling processing capabilities.

2. The combination of functions such as B axis, milling axis, positive and sub-spindle, and steady rest will enable the machine tool to have a strong composite processing capability, and the production capacity of multiple ordinary equipment can be realized by only one clamping, which not only greatly saves time and manpower It also reduces labor costs and greatly improves equipment utilization.

3. High-precision drive system. CNC turning adopts precision ball screws and linear rolling guides, which have high transmission efficiency and good precision retention, so that the machine tool rest moves quickly and stably, and has high positioning accuracy.

4.To prevent deformation of parts, CNC turning will be equipped with a cooling device to minimize the generation of thermal displacement.

Equipment configuration and parameters

Item	Unit	ALCK6160/1000
Max swing over bed	mm	Φ600
X-direction rail span	mm	210
Z-direction rail span	mm	400
Maximum swing over slide	mm	Φ395
Center distance	mm	1000
Maximum turning length	mm	850
Spindle hole diameter	mm	850
Bar diameter	mm	φ80
With hollow chuck pull rod through hole	mm	Φ65
Spindle speed limit	rpm	1600
Diameter of tailstock sleeve	mm	φ75
Knife square size	mm	□25×25(four stations)
X/Z direction fast moving speed	m/min	6/8
X stroke	mm	320
Minimum setting unit	mm	0.001
main motor power	KW	7.5
Total power	KW	13
Machine weight	Kg	2670
Dimensions (length × width × height)	mm	2650×1650×1750

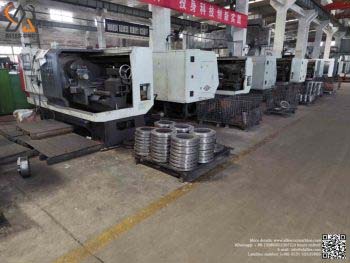

Horizontal CNC Lathe Application:

The flat bed CNC lathe is suitable for the turning of the outer circle, end face, thread, countersunk and inner hole of various metal shaft parts, as well as the milling of the plane and keyway. High-efficiency roughing and high-quality finishing. It is especially suitable for parts with complex shapes and high machining accuracy requirements.

CNC lathe machining parts
