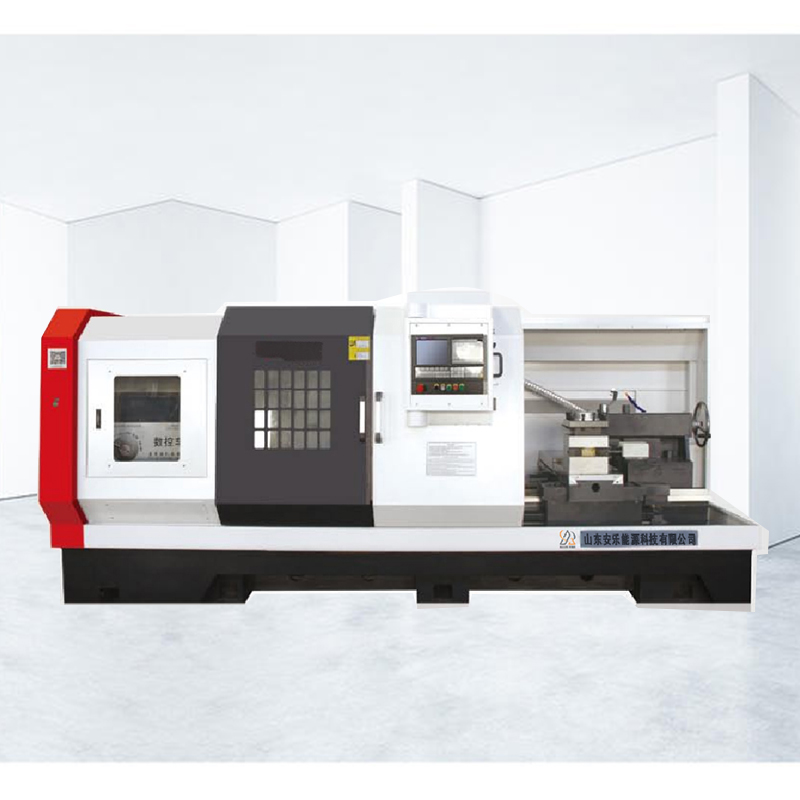

CK6185E automatic cnc lathe machine

CK6185E automatic cnc lathe machine is automatically controlled by the CNC system. It is suitable for the processing of various steel, cast iron and non-ferrous metal large and medium-sized parts. The machine tool has high power and good rigidity. It is especially suitable for strong cutting.
CNC Lathe Machine ——CNC Horizontal Lathe Machine
Video:



CNC Lathe Machine ——CNC Horizontal Lathe Machine
Video:

Product Specifications:

Model	Unit	Parameter
		ALCK6185E
Maximum turning diameter of bed	mm	φ850
X-direction rail span	mm	330
Z-direction rail span	mm	600
Maximum turning diameter of slide	mm	φ500
Center Head Distance	mm	1000
Maximum turning length	mm	950
Spindle hole diameter	mm	φ105
Bar diameter	mm	φ105
With hollow chuck pull rod through hole	mm	φ88
Diameter of tailstock sleeve	mm	φ100
Tailstock sleeve stroke	mm	250
X/Z direction moving speed	m/min	4/5
X direction stroke	mm	450
Z direction stroke	mm	1100
Minimum Setting Unit	mm	0.001
Total Electric Power	KW	16
Machine Net Weight	Kg	4100
Machine Size（L×W×H）	mm	3500×2000×2000

Product advantages:
1. It has the advantages of high automation, simple programming and high precision.
2. The machine tool is one-piece casting, ideal for heavy duty work.
3. The spindle speed is a mechanical three-step, variable frequency stepless speed regulation for each step.
4. The high stability of the CNC lathe has a three-speed speed change of the main shaft of the whole bed, and the stepless frequency conversion speed regulation in the gear is high and light base.

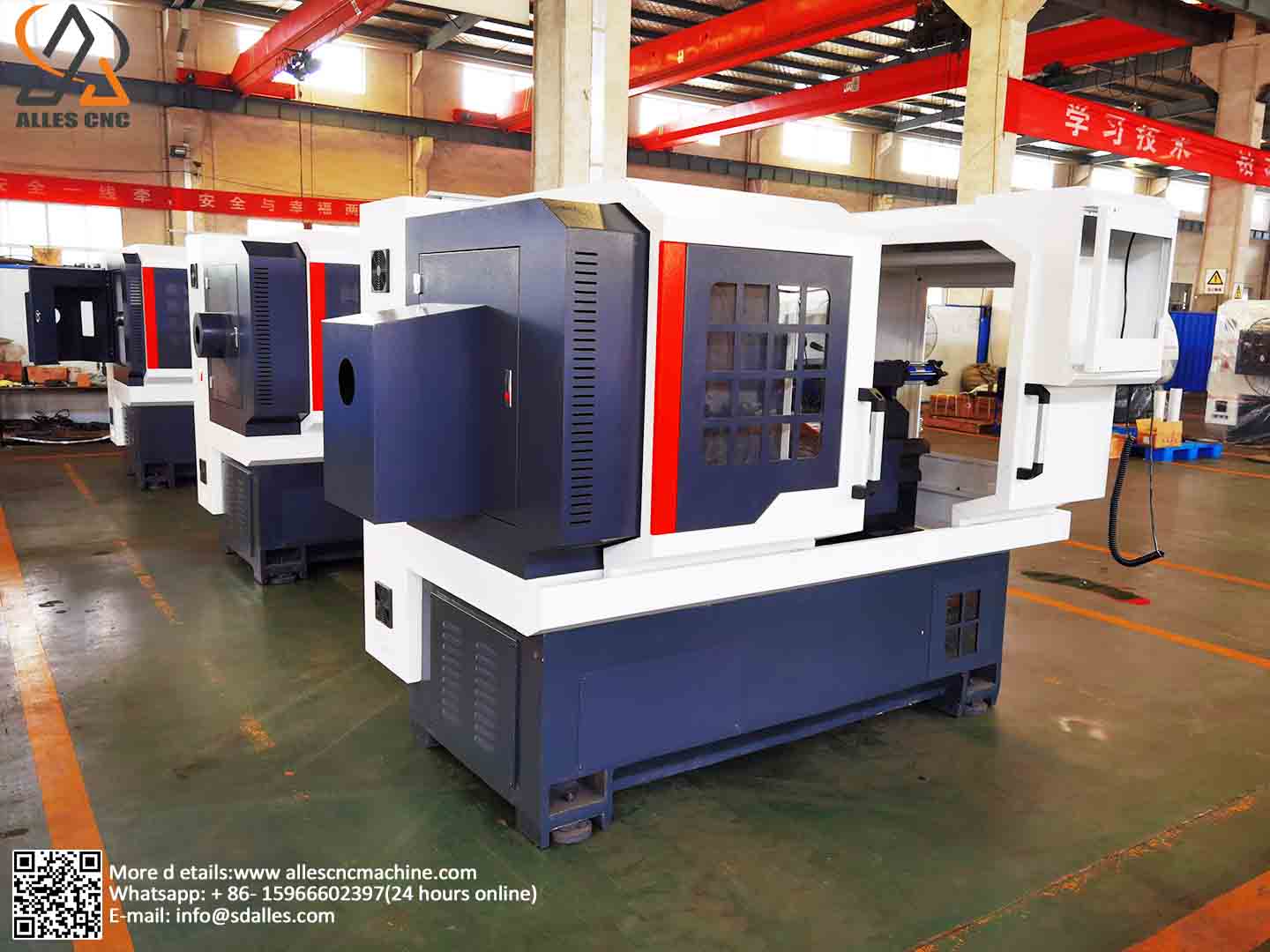

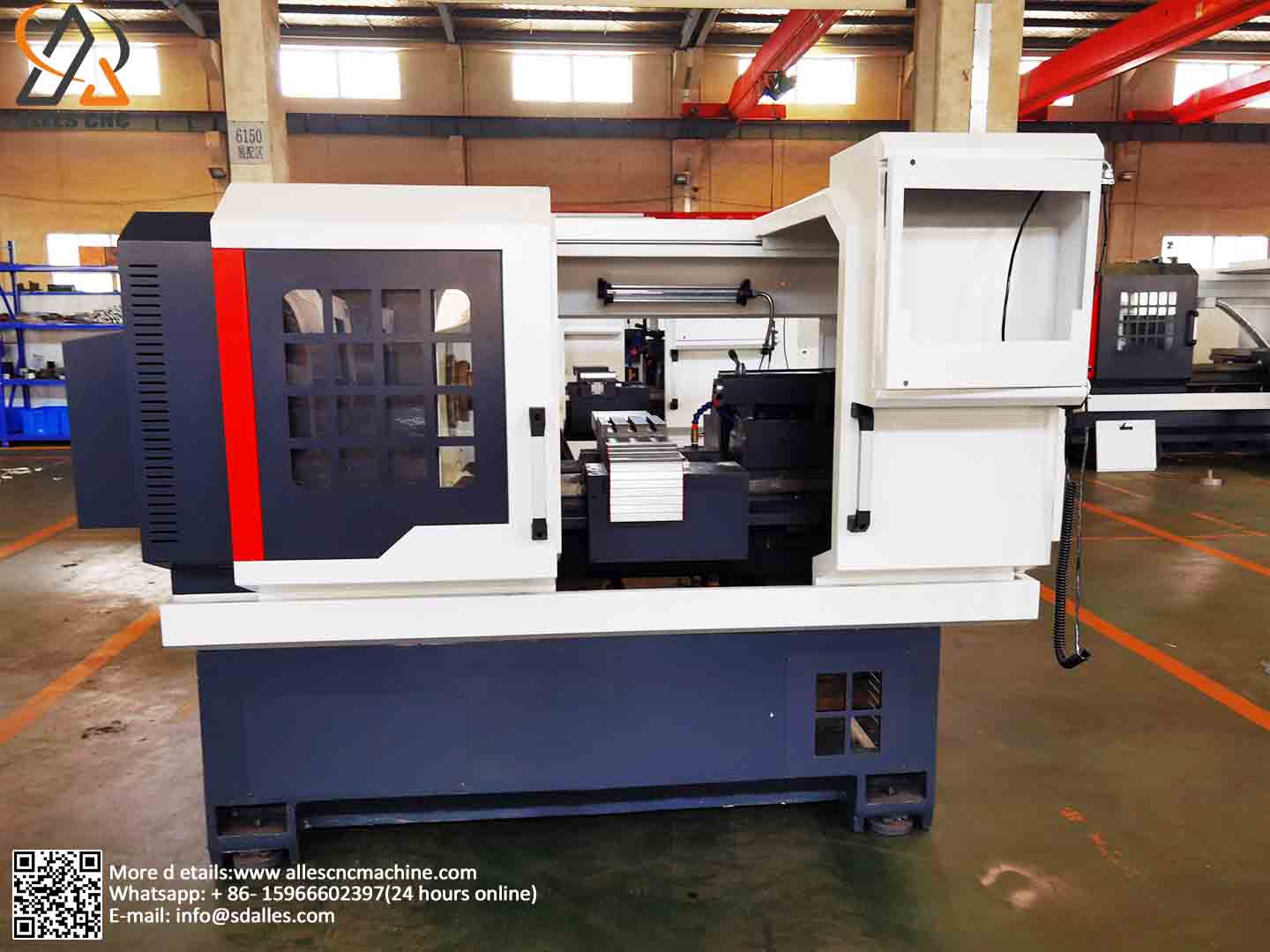

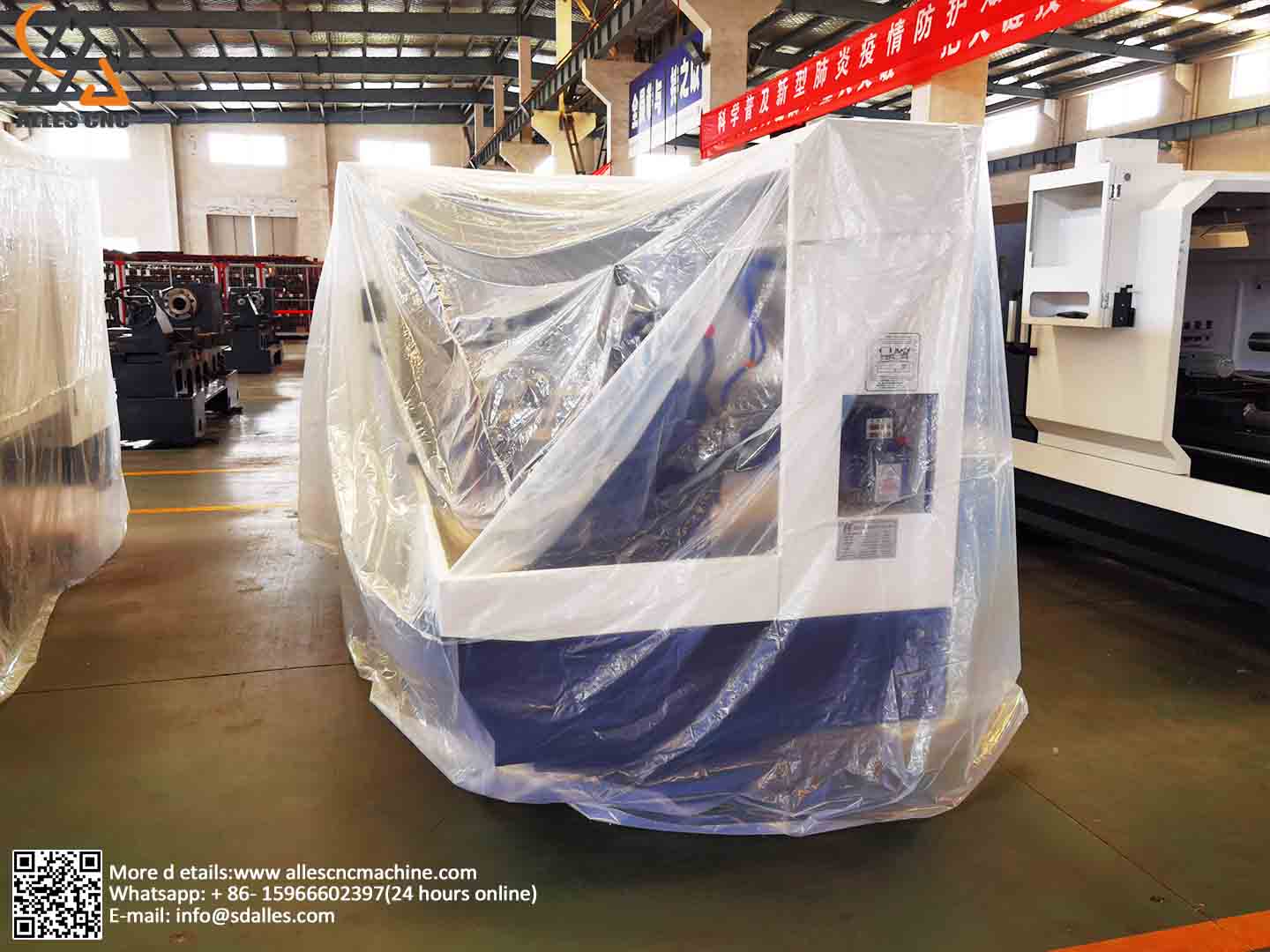

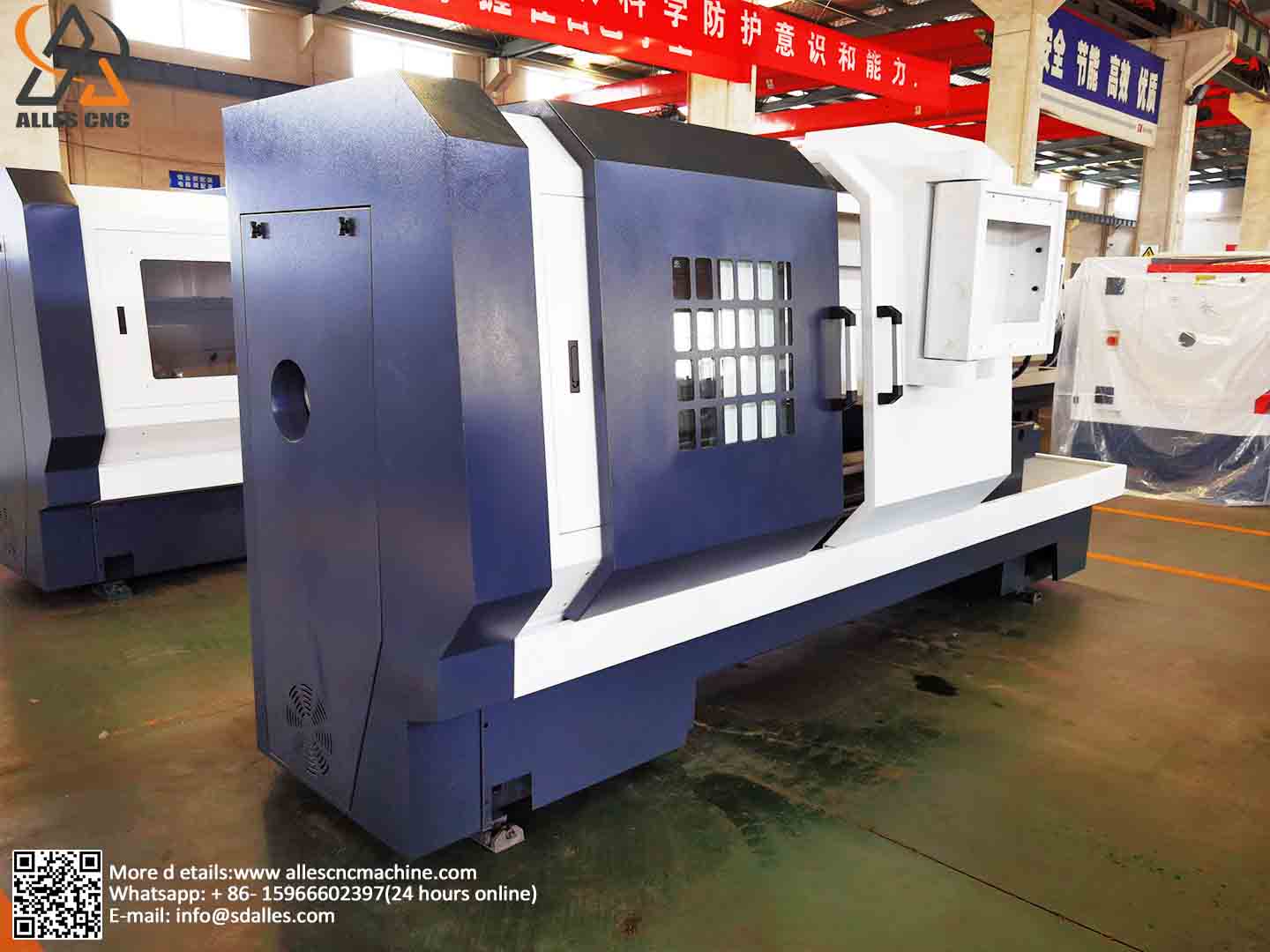

CK6185E CNC Lathe factory
