H36 cnc metal lathe machine torno metal turning machine

H36 turning cnc lathe is suitable for processing various small and medium shaft and disc parts, and can turn various threads, arcs, cones and inner and outer surfaces of rotary bodies. It is widely used in plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, Bearings and other industries.

Product Description

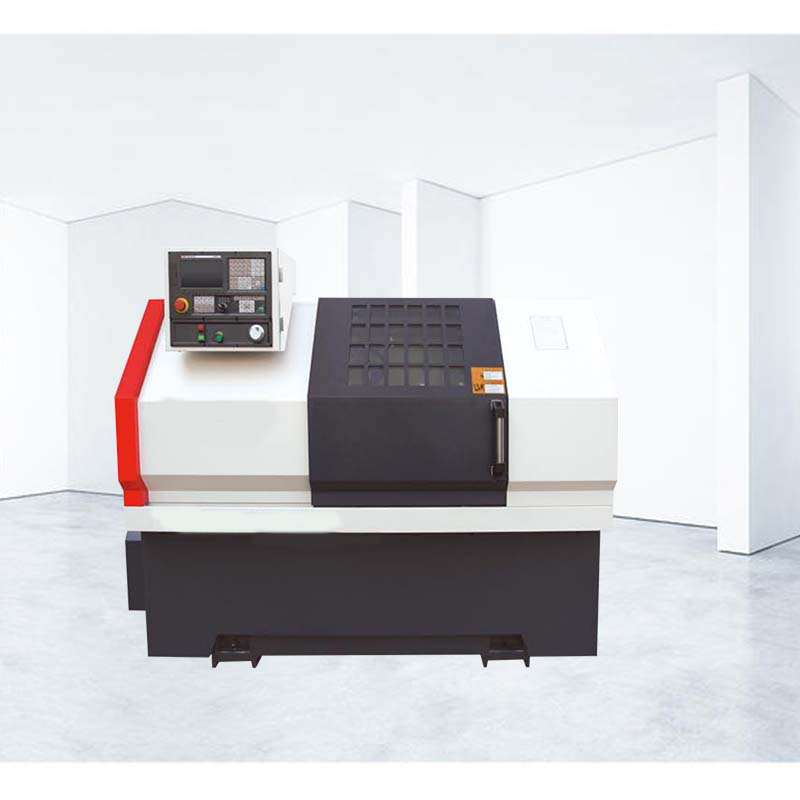

H36 cnc metal lathe machine torno metal turning machine

product description:

H36 turning cnc lathe tool adopts mechatronics design, beautiful appearance, reasonable structure, low noise and high positioning accuracy. H36 cnc mini lathe has a wide range of uses and is easy to operate. H36 fanuc cnc lathe can automatically complete the thread processing of internal and external circles, grooving, end faces, spherical surfaces and various male and English cylinders and cones for turning various parts.
Video:

Video:

Product Specifications:

Machine Model	Unit	H36
Max swing over bed	mm	Φ360
Max swing over cross slide	mm	Φ110
Maximum processing length	mm	250
X/Z axis travel	mm	320/250
Spindle nose		A2-5
Spindle bore	mm	Φ48
Bar Capacity	mm	Φ40
Max. spindle speed	rpm	4000
Spindle motor	kw	4
X/Z axis repeatability	mm	±0,003
X/Z axis feed motor torque	N.m	Χ:4 Ζ:4
X/Z Rapid traverse	m/min	15/15
Cutting tool size	mm	20×20
Machine dimension(L×W×H)	mm	2000×1400×1580
Net. weight (about)	kg	1500

Product advantages:

1. The bed has high rigidity, and the bed guide adopts Taiwan linear slide, which has the characteristics of high precision and high efficiency.
2. The structural rigidity and transmission rigidity of the machine tool are higher than those of ordinary lathes, and the power utilization rate is high, which is suitable for high-precision and high-speed cutting.
3. The tool holder adopts the row tool holder, which is convenient for cutting and does not need to change the tool.
4. The spindle system has good rigidity. The spindle is variable frequency stepless speed regulation. The main shaft has a large bore diameter and a complete range of optional accessories.
