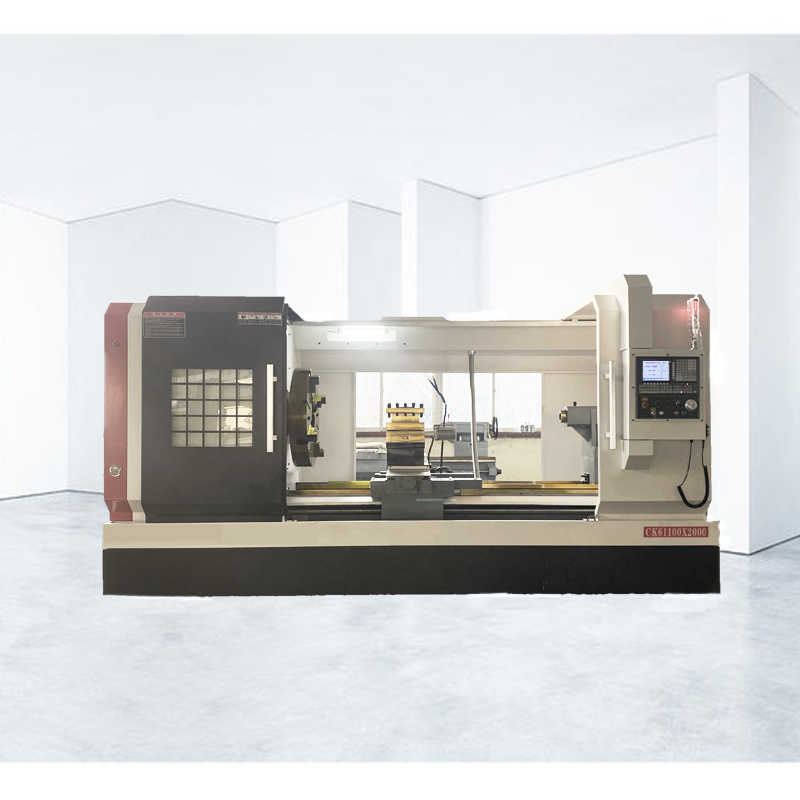

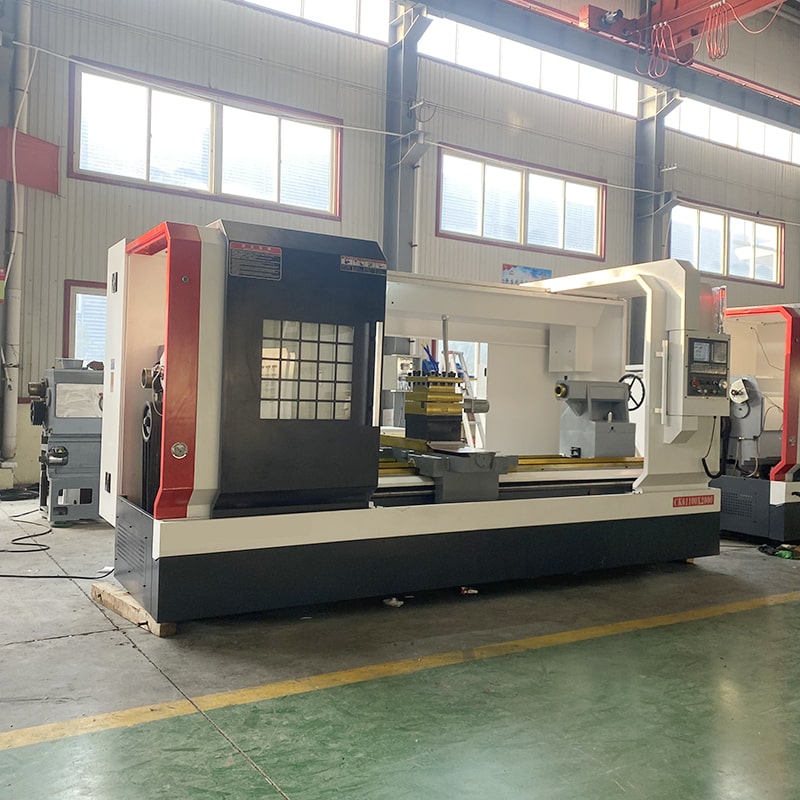

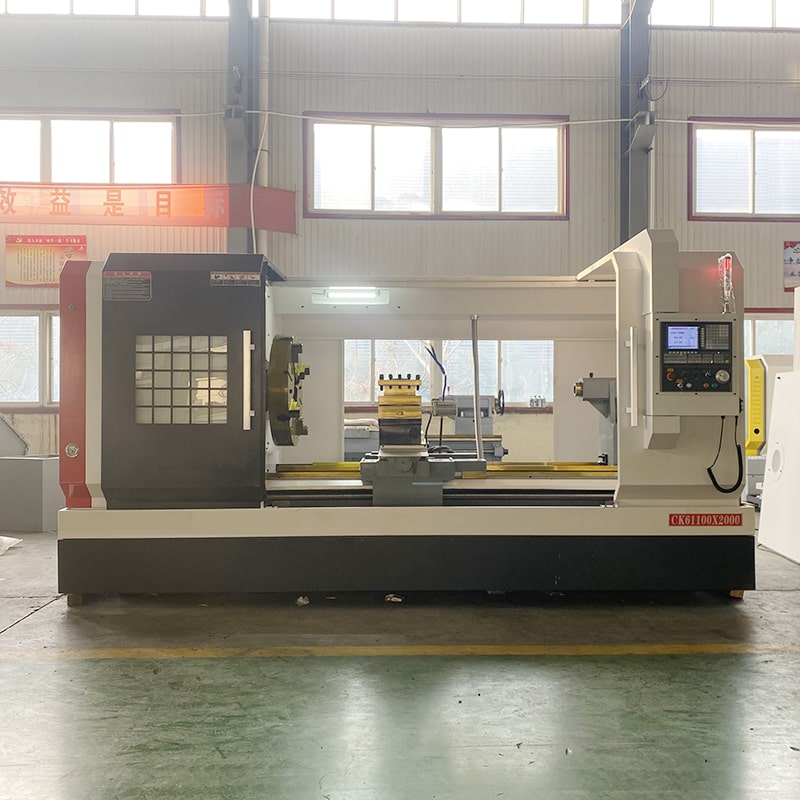

Flat bed CNC lathe ALCK61100X2000 Horizontal CNC Lathe

Horizontal CNC Lathe ALCK61100X2000 is capable of completing complex machining processes such as turning, drilling, boring, tapping, end-face processing, etc.

Flat bed CNC lathe ALCK61100X2000 has a high-precision control system and a high-precision measurement system, which can ensure machining accuracy and stability.

Product Description

CNC lathe ALCK61100X2000 is capable of machining a wide variety of materials including metals, plastics, ceramics and more. Automatic cnc lathe can also be used for turning inner and outer circles, threads, flanges, gears, splines, etc., as well as machining parts of various shapes.

Features:

1. ALCK61100X2000 Horizontal CNC Lathe is suitable for manufacturing parts of various materials, and has strong applicability and flexibility.

2. ALCK61100X2000 CNC lathe for metal has the characteristics of high efficiency. It adopts a CNC system with a high degree of automation, which can realize high-speed and high-efficiency processing. In addition, it is also equipped with a multi-head turret and an automatic tool change system, which can complete multiple processes at one time, greatly improving production efficiency.

3. ALCK61100X200 CNC turning adopts advanced tool cutting technology, which can realize efficient processing and improve processing efficiency and productivity.

4.ALCK61100X2000 Horizontal CNC Lathe has high precision, high stability and high reliability.

CNC lathe ALCK61100X2000 application:

ALCK61100X2000 CNC lathe is widely used in various industries, such as aviation, automobile, machinery manufacturing, electronics, medical equipment, etc. It is capable of processing a wide variety of materials, including metals, plastics, ceramics, and more.

Video

Product Specifications

Content	Unit	ALCK61100X2000
Maximum turning diameter of bed	mm	Φ1000
Maximum turning length	mm	2000
Maximum machining diameter	mm	Φ1000
Maximum bar diameter	mm	Φ500
Spindle hole diameter	mm	Φ105
X/Z axis travel	mm	500/2000
Tool Specifications: Turning/Boring	mm	32/40
Tailstock sleeve stroke	mm	Φ100/250
Main motor power	Kw	11
X/Z motor power	Kw	1.5/2.3
Machine Net Weight	kg	5500
Machine Size（L×W×H）	mm	4400/1900/2000

Flat bed CNC lathe ALCK61100X2000 Horizontal CNC Lathe
