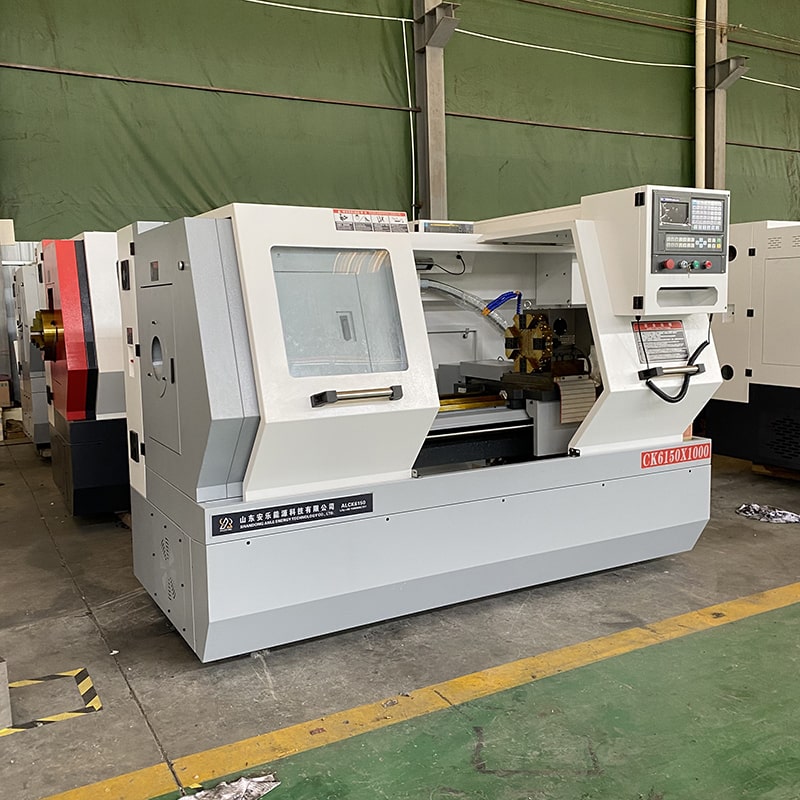

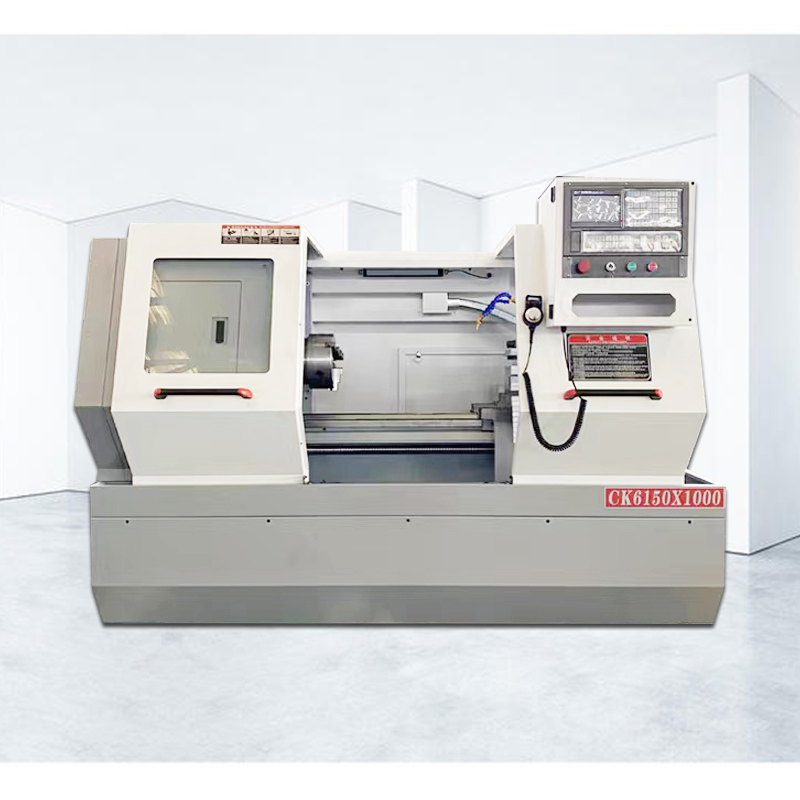

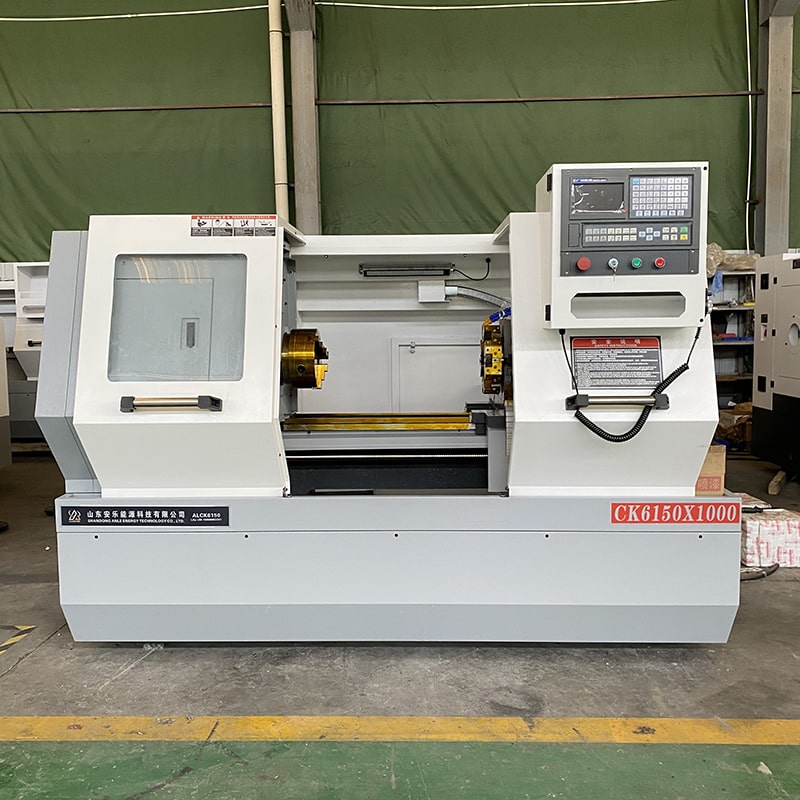

Automatic CNC Lathe ALCK6150 Flat Bed CNC Lathe
ALCK6150 CNC turning has the characteristics of high precision, high efficiency, good stability and strong flexibility. It is used in the machinery manufacturing industry to produce various machine tool parts, molds, bearings, etc.
Product Description
Horizontal CNC Lathe has the ability of high-speed processing, and can realize automatic processing, which reduces the time of manual intervention and greatly improves the processing efficiency.
Video
Product Specifications
Features:
1.Horizontal CNC Lathe ALCK6150 adopts CNC system, which can realize high-precision processing through programs, and can meet the processing needs of various precision requirements.
2. CNC turning has the ability of high-speed processing, and can realize automatic processing, which reduces the time of manual intervention and greatly improves the processing efficiency.
3.Horizontal CNC Lathe ALCK6150 adopts high-quality materials and manufacturing process, the whole machine has stable structure, stable operation, higher precision and reliability.
4. Flat bed CNC lathe can realize processing of different shapes and sizes, only need to modify the program, which greatly improves the flexibility and adaptability of processing.
Video
Application fields of ALCK6150x1000 CNC metal lathes:
Horizontal CNC Lathe ALCK6150 is widely used in automobile manufacturing, machinery manufacturing, electronic manufacturing, aerospace and other fields.
Video
Product Specifications
|
Item
|
Unit | ALCK6150*1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Tailstock sleeve stroke | mm | 130 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
| Weight | Kg | 2500 |
| Machine size | mm | 3030*1600*2050 |
