Horizontal CNC Lathe ALCK6136 CNC lathe for metal

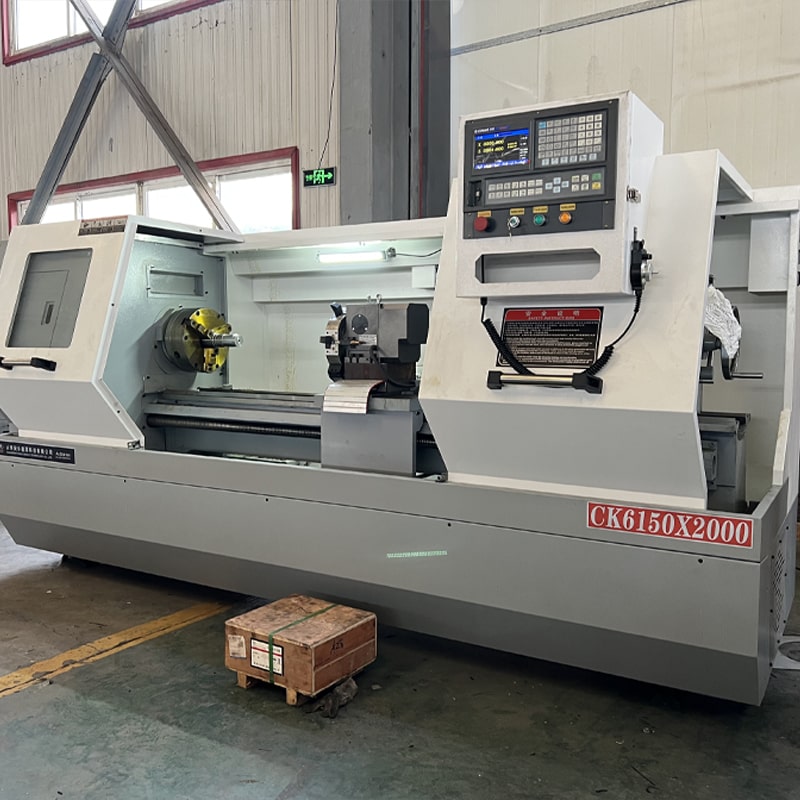

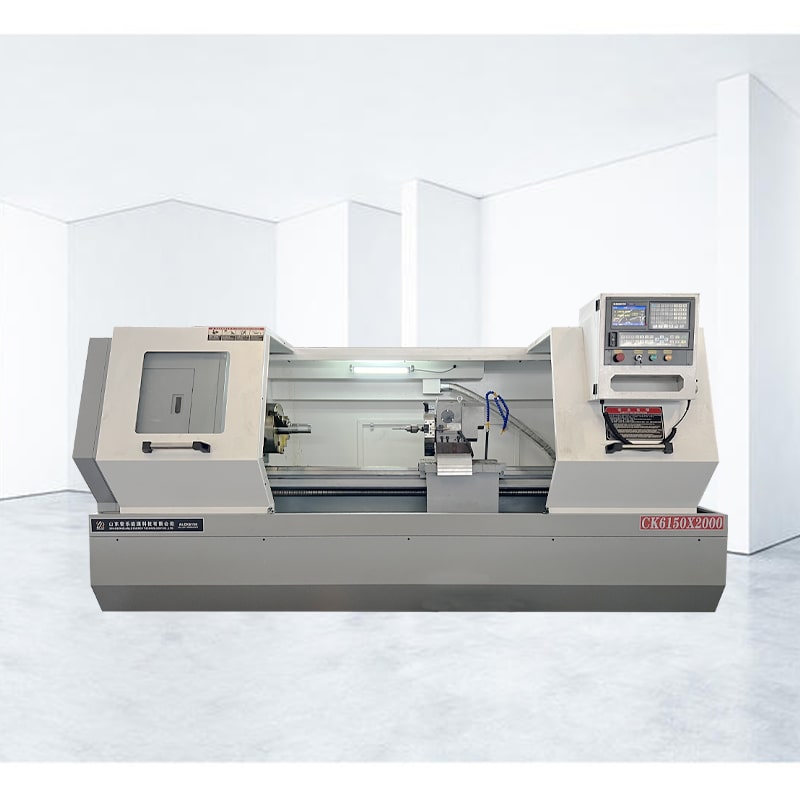

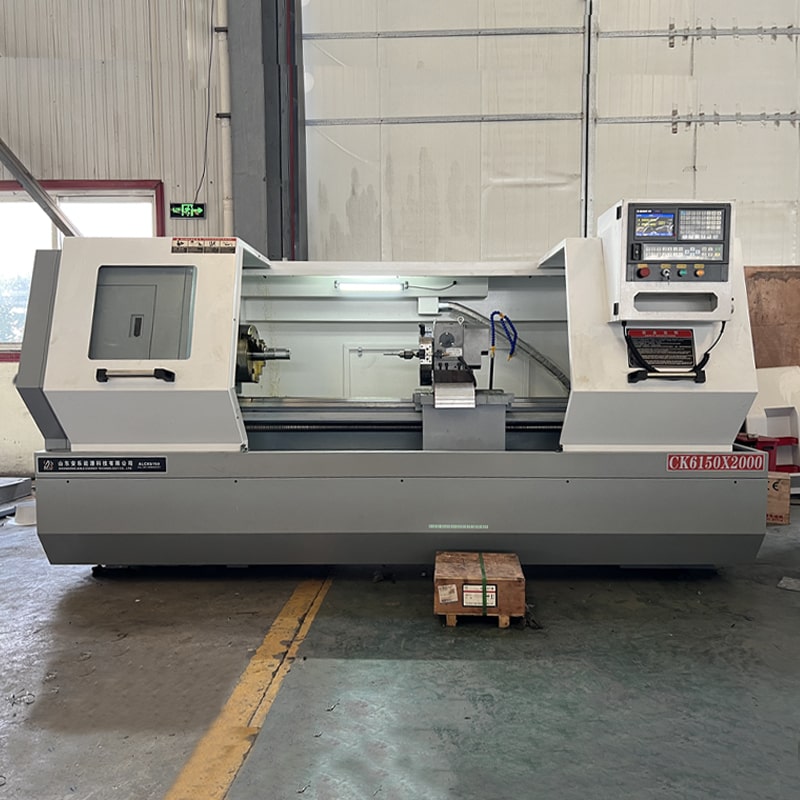

ALCK6150x2000 CNC lathe is widely used in machining, aerospace, shipbuilding, military and other industries.

Product Description

ALCK6150x2000 CNC lathe can use a variety of cutting methods in the processing technology of the automobile manufacturing industry, such as outer circle cutting, inner circle cutting, turning, boring, etc. CNC lathes can adopt advanced technologies such as high-speed cutting and hardness processing to further improve processing efficiency and processing quality, and meet the diverse needs of the automobile manufacturing industry for parts processing.

Features:

1. CNC turning is equipped with a high-performance numerical control system, which is easy to operate and easy to program, making the machining process efficient and accurate.

2. CNC lathe uses advanced hydraulic system, which can realize high-speed precision machining and ensure the high-precision machining quality of products.

3. Automatic lathe has a large processing range and can process workpieces with a diameter of 500mm and a length of 2000mm, which is suitable for mass production.

4. The flat bed CNC lathe is equipped with automatic tool changer, automatic coolant supply system and other automatic equipment, which makes the machining process highly automated and improves production efficiency.

CNC lathe CK6150 application:

ALCK6150x2000 CNC lathe is widely used in machining, aerospace, shipbuilding, military and other industries.

Video

Product Specifications

Item	ALCK6150x2000
The maximum turning diameter on the bed	Φ500mm
Maximum turning diameter on the carriage	Φ290mm
Maximum cutting diameter	Φ500mm
Maximum processing length	2000mm
X/Z axis maximum stroke	2000mm
Spindle aperture	Φ82mm
Spindle speed limit	150-2000/60-1600rpm
Spindle end	A2-8/C8
Main motor power (frequency conversion)	7.5kw
Inverter	7.5kw
X/Z axis	5/7.5N.m
X/Z axis moving speed	6/8m/min
Tailstock sleeve diameter	Φ65mm
Tailstock sleeve stroke	130mm
Power demand (power/current)	15kW/20A
