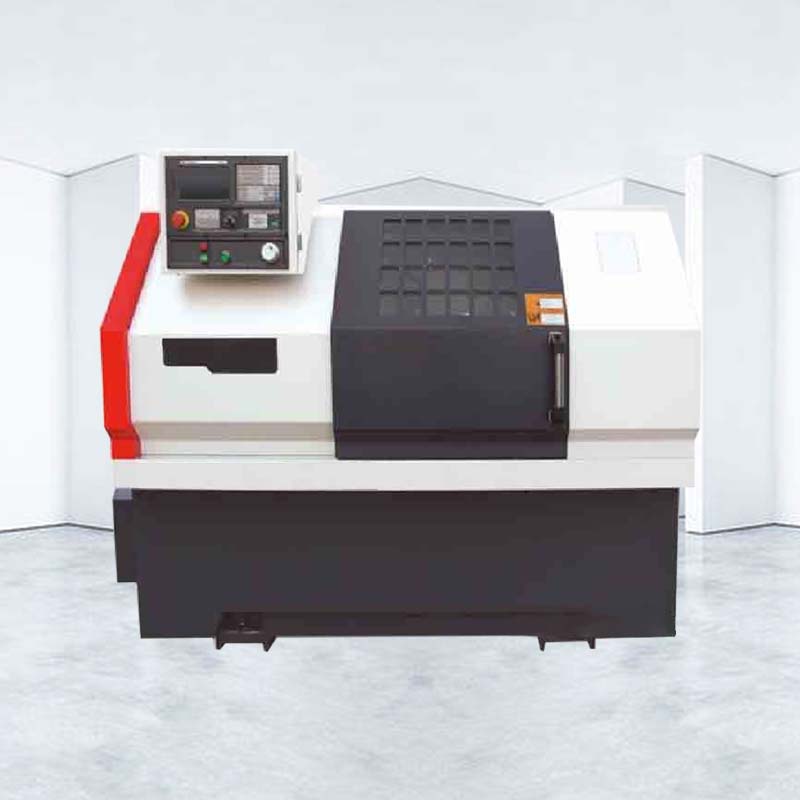

CNC Lathe Machining Metal
The automatic cnc lathe is suitable for the processing of precision parts such as aviation equipment, optoelectronics, automobiles, sanitary ware, and military industries.
Product Description
| Name | Project | ALH32i |
| The main parameters | Maximum turning diameter of bed surface | Φ320mm |
| Maximum machining diameter of carriage | Φ70mm | |
| Maximum processing length | 280 | |
| Spindle speed | 4000pm | |
| Spindle hole diameter | Φ48 | |
| Bar diameter | Φ41 | |
| X axis limit stroke | 280 | |
| Z axis limit stroke | 330 | |
| Bed Frame | Bed form and slope | Flat bed |
| Shape | Length*width*height (mm) | 1580X1250X1680 |
| Weight | Weight (approximate weight) | 1500kg |
CNC lathe For Metal Feature Description
The bed has high rigidity, and the bed guide adopts Taiwan linear slide, which has the characteristics of high precision and high efficiency.
CNC lathe for metal is driven by servo motor vertically and horizontally, and driven by precision ball screw.
The cnc lathe has high power utilization and is suitable for high-precision and high-speed cutting.

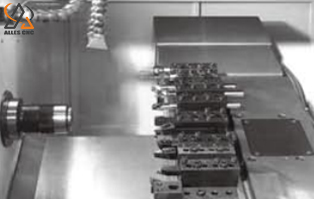

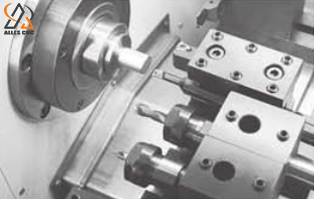

The tool holder adopts an array tool holder, which is convenient for cutting and does not need to change the tool.
CNC lathe processing is easy to operate, centralized and user-friendly.
Each lubricating point is fixed by forced automatic lubricating device
Flat Bed CNC Lathe Advantages
cnc lathe is a high-speed, high-precision, high-reliability linear guide flat bed machine tool. The main components such as bed, bed, head box are all cast with high-strength materials, which ensures the long-term stability and precision of CNC lathe.
It adopts a flat bed structure and is equipped with high-precision preloading Taiwan linear rolling guides. The flat bed CNC lathe has high positioning accuracy and smooth chip removal, suitable for high-speed and high-precision machining.
Application Of Cnc Lathe
CNC lathe for metal has a wide range of applications: aviation industry, aerospace industry, shipbuilding industry, automobile manufacturing, weapon manufacturing, power generation equipment manufacturing, metallurgical equipment manufacturing, engineering machinery manufacturing, mold manufacturing, electronic information equipment manufacturing, etc.You May Also Like
