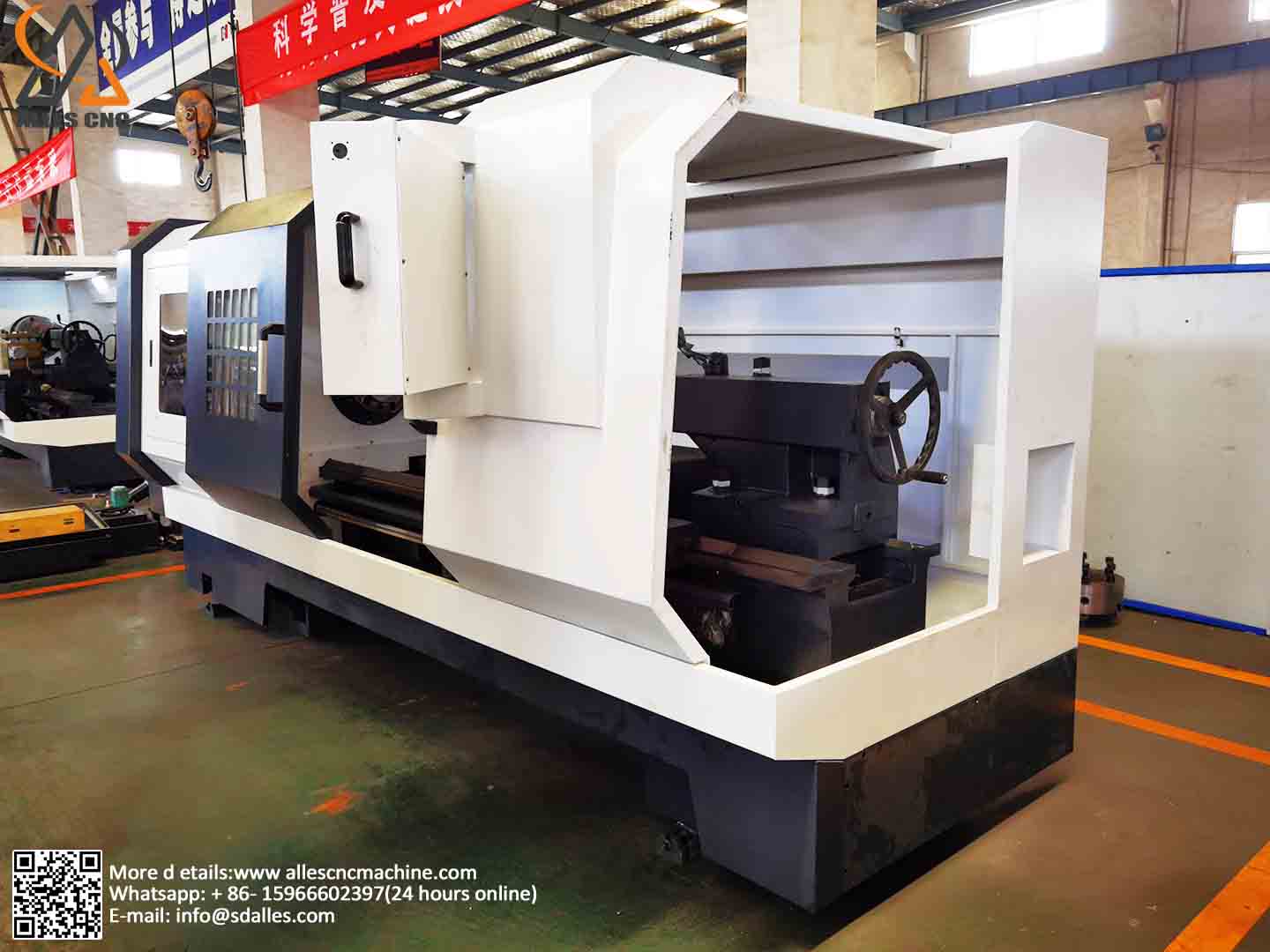

ALCK5085D turning cnc lathe

CNC lathes are high-performance CNC products with complete functions, high processing efficiency, good reliability, accuracy and stability, and high degree of automation. They are ideal equipment for efficient production.

Product Description

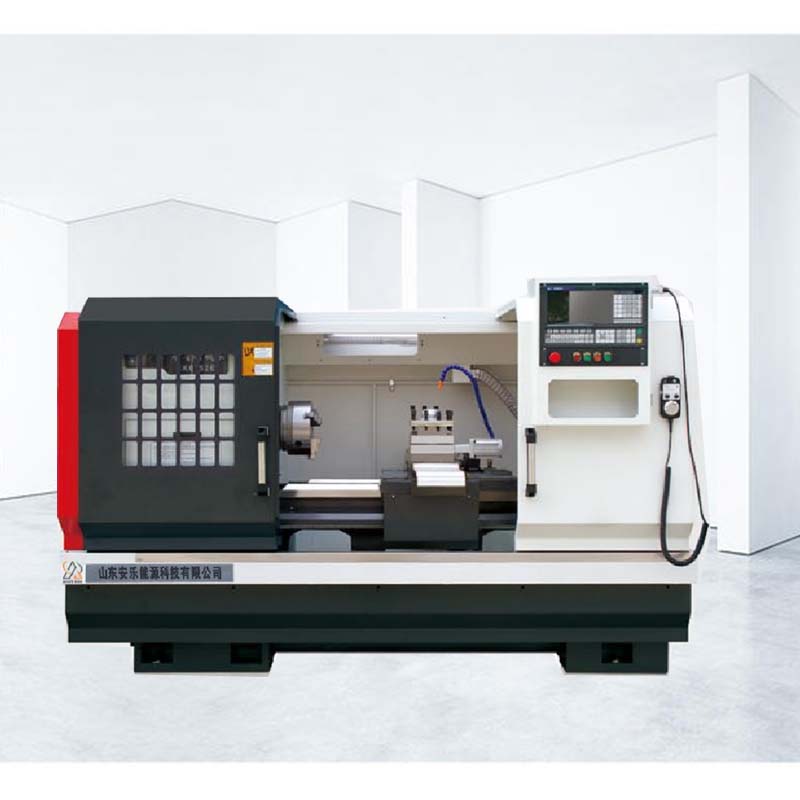

ALCK5085D turning cnc lathe

product description:

The CNC lathe has mature structure, stable performance, high quality, easy programming and simple operation. Turning processing such as expansion, reaming, etc., is especially suitable for the alternate processing of multi-variety, small and medium-sized parts.
Video:

Product Specifications:

Item	Unit	parameter
Item	Unit	ALCK5085D/1000
Maximum turning diameter of bed	mm	φ520
X-direction rail span	mm	210
Z-direction rail span	mm	400
Maximum turning diameter of slide	mm	φ300
Center Head Distance	mm	1000
Maximum turning length	mm	850
Spindle hole diameter	mm	φ82
Bar diameter	mm	φ82
With hollow chuck pull rod through hole	mm	φ62
Spindle Ends Pattern		A2-8
Diameter of tailstock sleeve	mm	φ75
X/Z direction moving speed	m/min	4/5
X direction stroke	mm	280
Z direction stroke	mm	1000
Minimum Setting Unit	mm	0.001
Main motor power	KW	7.5
Total Electric Power	KW	13
Machine Weight	Kg	2600
Machine Size（L×W×H）	mm	2750×1800×1900

Product advantages:

1. The turning cnc lathe adopts a horizontal flat bed structure, and the surface of the guide rail is quenched and then subjected to precise grinding, with good precision and precision retention.

2. The mini cnc lathe adopts an independent spindle structure and is equipped with high-precision spindle special bearings, with high spindle speed and small thermal deformation.

3. ALCK5085D metal turning machine This machine tool is easy to operate, conforms to ergonomic design and requirements, and has low maintenance costs.
