Precision machining of complex shaped parts on slant bed lathe.
The advantages of the inclined bed turning-milling compound machine are to reduce the number of clamping and improve the machining accuracy; shorten the product manufacturing process chain and improve the production efficiency; reduce the floor space and reduce the production cost. The slanted bed turning and milling compound machine tool is a CNC equipment that has developed rapidly and is widely used in compound machining machine tools.
Product Description
Structural features

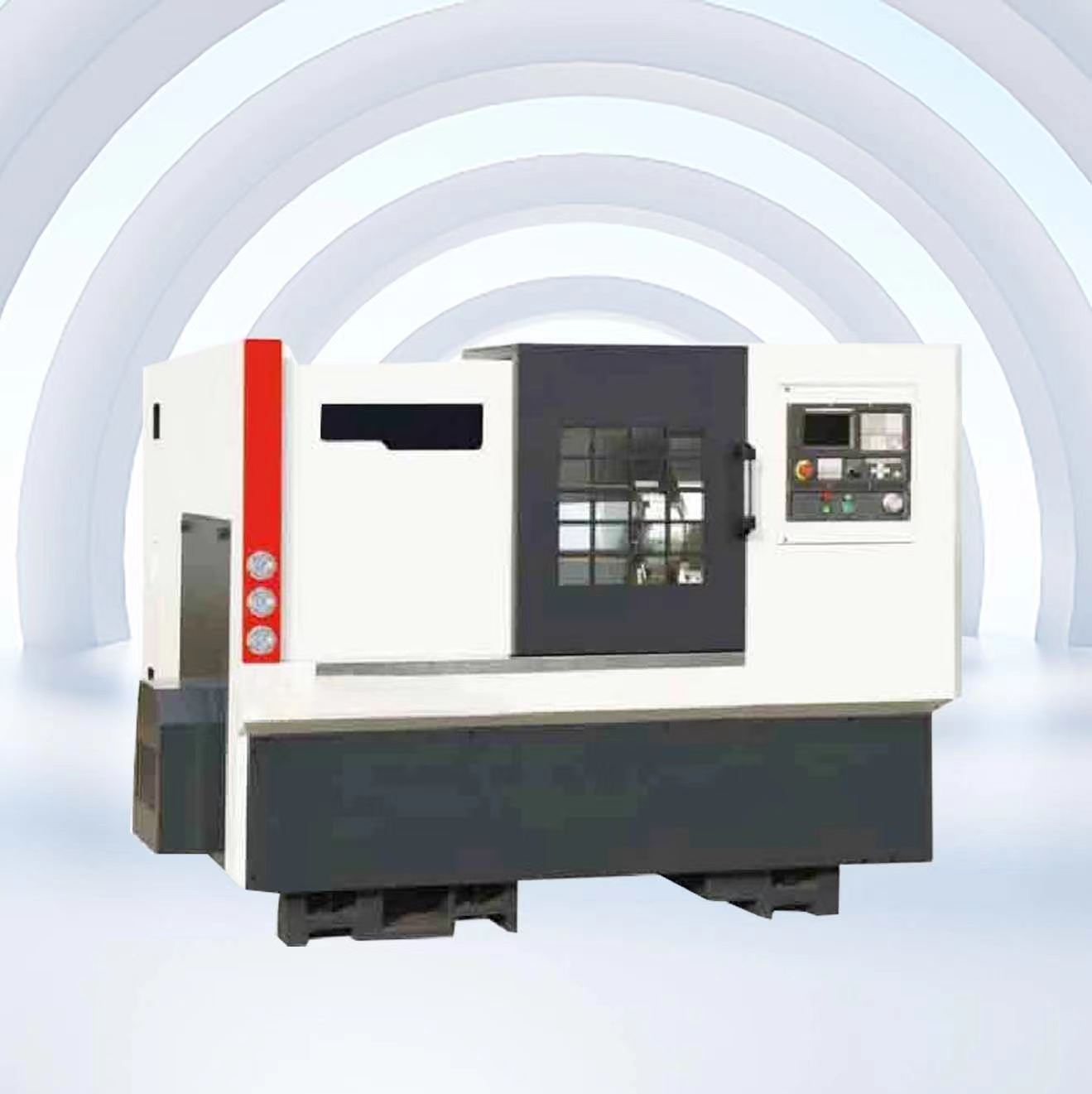

The slant bed lathe is a high-speed, high-precision, high-reliability slant bed lathe. The main parts such as bed, bed, head box are all cast with high-strength materials, which ensures the long-term stability of the slant bed lathe. It adopts a 45° overall inclined bed structure and is equipped with high-precision preloading Taiwan linear rolling guides. The inclined bed with CNC has high positioning accuracy and smooth chip removal, and is suitable for high-speed and high-precision machining.| Section | Item | ALTCK36A |
| The main parameters | Maximum upper turning diameter of bed | Φ360mm |
| Maximum machining diameter on tool post | Φ140mm | |
| Maximum processing length |
300
|
|
| Spindle and chuck parameters | Spindle head type (optional chuck) | A2-5 |
| Spindle motor power | 3.7/5.5KW | |
| Spindle speed | 4000pm | |
| Spindle hole diameter | Φ48 | |
| Bar diameter | Φ41 | |
| Feed part parameters | X/Z axis screw specifications | 25*10/32*10 |
| X axis limit stroke | 170 | |
| X/Z axis rail specifications | 30/30 | |
| Z axis limit stroke | 350 | |
| Sleeve stroke | 60 | |
| Maximum stroke of tailstock | 200 | |
| Bed frame | Bed form and slope | Integral/45° |
| Shape | length * width * height (mm) |
2200×1600×1850
|
| Weight | Weight (approximate weight) |
2200kg
|
Accessories

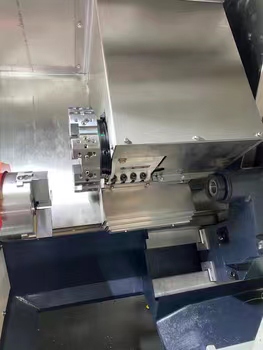

High-speed, high-precision, high-rigidity cartridge-type spindle unit, servo spindle motor, can achieve higher spindle speed. The spindle unit is assembled in a constant temperature chamber. After assembly, it will run at a constant temperature for 72 hours, and will be tested for 72 hours after being put on the machine to ensure the reliability of high-speed and high-precision performance. Equipped with 8-station hydraulic turret as standard, the tool change speed is fast and the positioning accuracy is high.
Vertical Machining Center CNC Lathe Machine Factory Vertical machining center has the characteristics of high productivityveritability,high ALLEs CNC all castings must pass the test of time before they can be aoplied to the accuracy.ease of programmingenvironmental friendly and so onVertical machining machine. All parts must be tempered a second time.After the production of the machine center is suitable for the mechanicalorocessine and mold makine.And it can adapt to is comoletedthe machine will continue to work for 72 hours without processine the the processing requirement from rough machining to finish machiningIt can also finish workpiece to ensure that the machine can be used ormally. many working procedures like millingdrillingtappingboring etc warehouse covers an area of about 4000 square meters.equipped with various factory produced parts, purchased parts and CNC systems.GSK systen purchases about 200-300 sets at a time, and the system is in stock,the yield is very high.
In order to ensure the working accuracy of the CNC lathe and prolong the service life, it is necessary to carry out reasonable maintenance work on the CNC lathe with inclined bed for self-use. The quality of lathe maintenance directly affects the processing quality and production efficiency of the workpiece. The maintenance work of CNC lathes is mainly carried out by operators, and maintenance workers cooperate with each other. During maintenance, the electric probe must be cut off first, and then maintained according to the maintenance content and requirements.
Scope of application of CNC lathe with inclined bed
The inclined bed CNC lathe is an all-round precision CNC lathe with high precision, flexibility and durability, elegant appearance and strong practicability. It is most suitable for precision machining of various high-precision, multi-batch, complex-shaped parts used in aviation, electronics, clocks and other industries.You May Also Like
