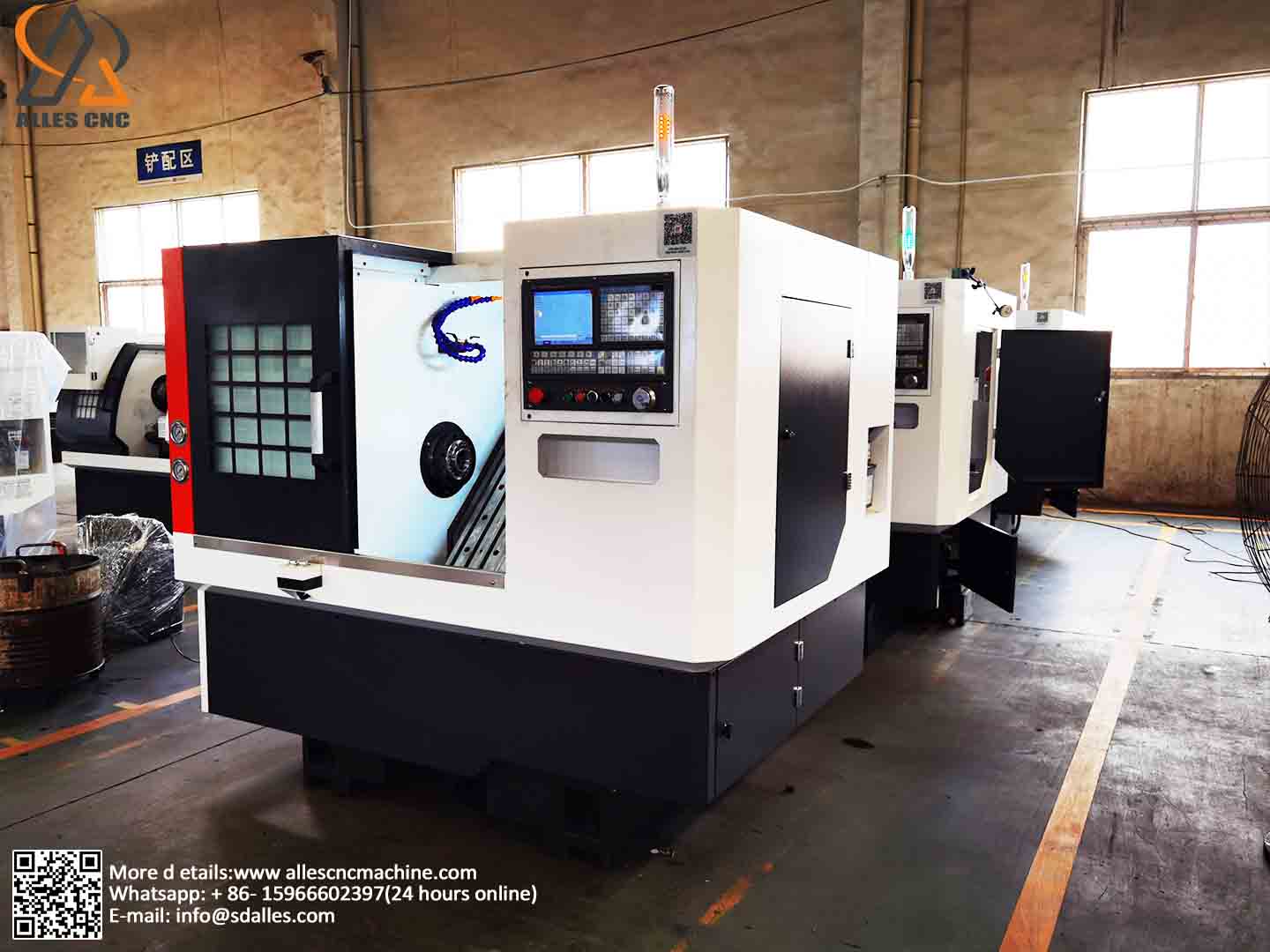

ALTCK36A mini lathe milling machine

TCK36A mini lathe milling machine is a high-speed, high-precision, high-reliability inclined-bed machine tool. The main components such as the bed base, bed body, and headstock are all cast with high-strength materials to ensure the long-term stability of the machine tool.

Product Description

ALTCK36A mini lathe milling machine

product description:

The CNC lathe with inclined bed is a kind of automatic machine tool with high precision and high efficiency. Its linear rolling guides meet the requirements of high speed and high efficiency, reduce frictional resistance and temperature rise deformation, improve machining accuracy, and ensure long-term stability of cutting machining accuracy.

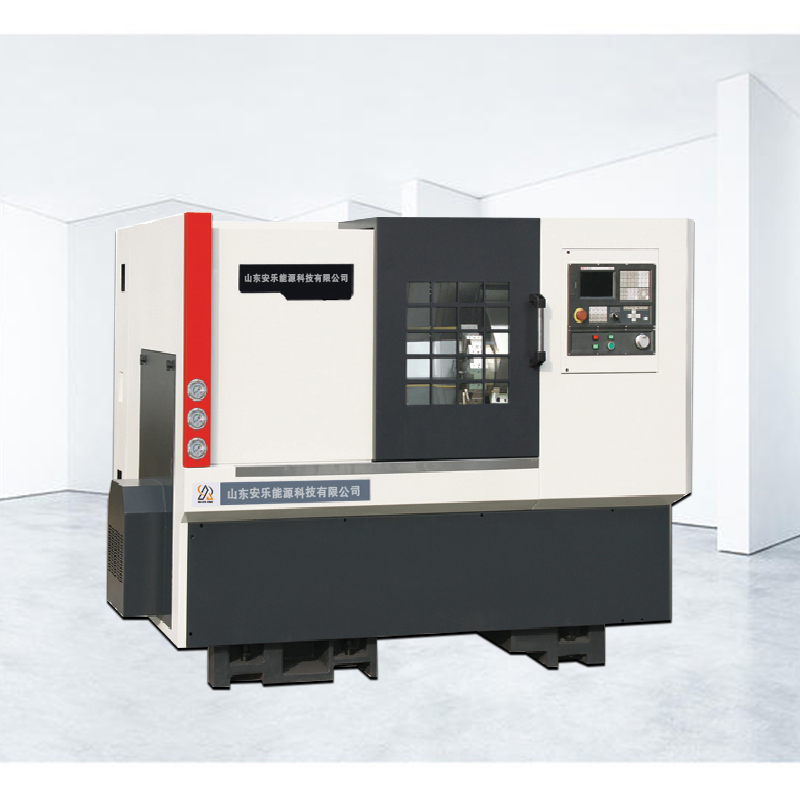

Slant Bed And Linear Guide Way CNC Lathe ALTCK36A
Video:

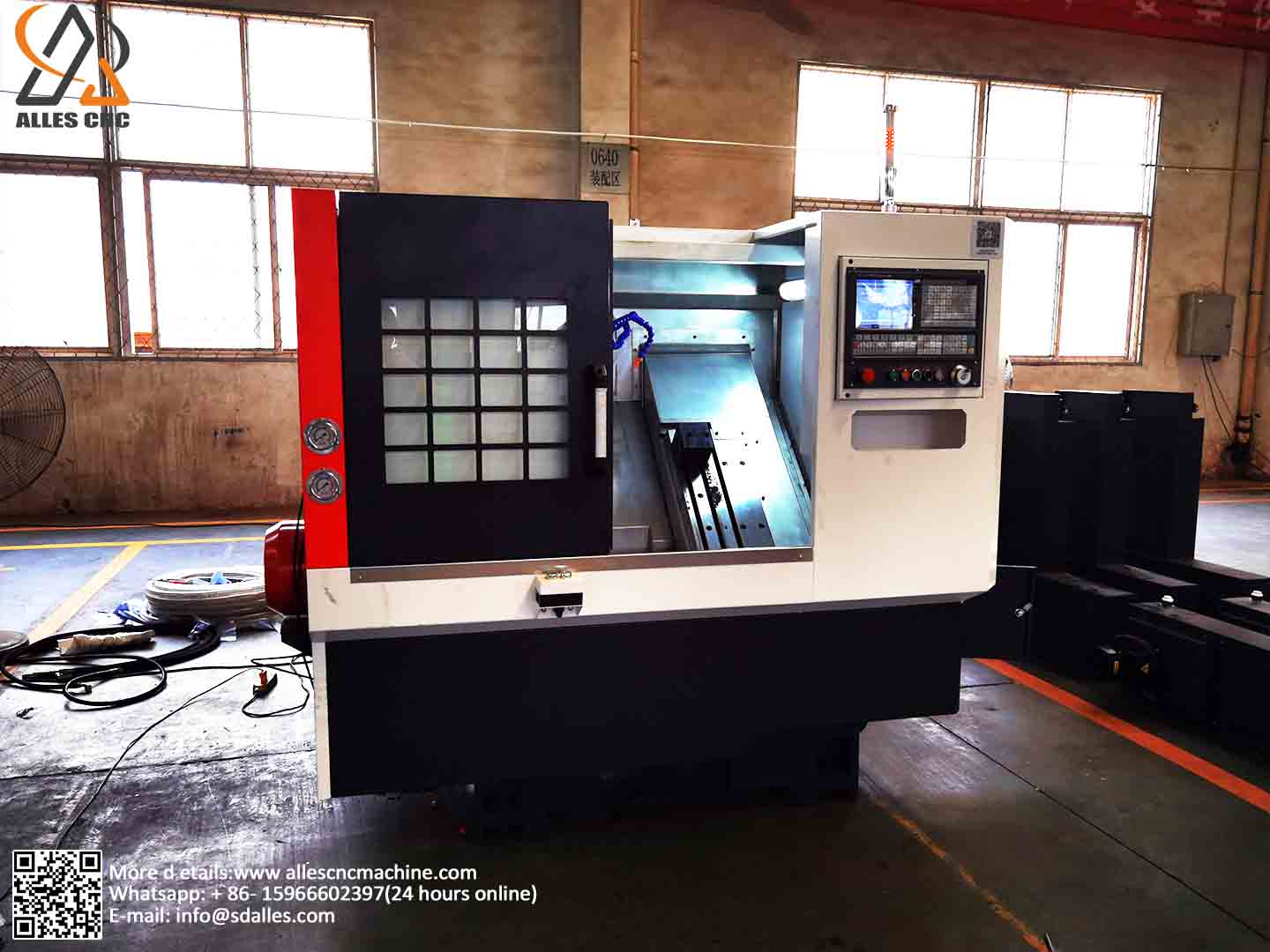

Slant bed CNC lathe ALTCK36A
Video:

Product Specifications:

Item	ALTCK36A
Maximum upper turning diameter of bed	Φ360mm
Maximum machining diameter on tool post	Φ140mm
Maximum processing length	300
Spindle head type (optional chuck)	A2-5
Spindle motor power	3.7/5.5KW
Spindle speed	4000pm
Spindle hole diameter	Φ48
Bar diameter	Φ41
X axis limit stroke	170
X axis motor torque	6N.M
X/Z axis rail specifications	30/30
Z axis limit stroke	350
Z-axis motor torque	6N.M
X, Z axis connection	Direct
Sleeve diameter	Φ65
Sleeve stroke	60
Maximum stroke of tailstock	200
length * width * height (mm)	2200×1600×1850
Weight (approximate weight)	2200kg

Product advantages:

1. Good stability. Since the parts of medium and large machine tools are relatively large, especially the turret, the purpose of the oblique guide is to overcome gravity and increase the accuracy of the machine tool.

2. Improve the utilization rate and adopt the oblique cutting process, which can make full use of the site and greatly reduce the plane occupied area of the machine tool.

3. It is easy to remove chips, and the inclined track can also facilitate the collection of chips on the chip conveyor, which is convenient for automatic chip removal.
