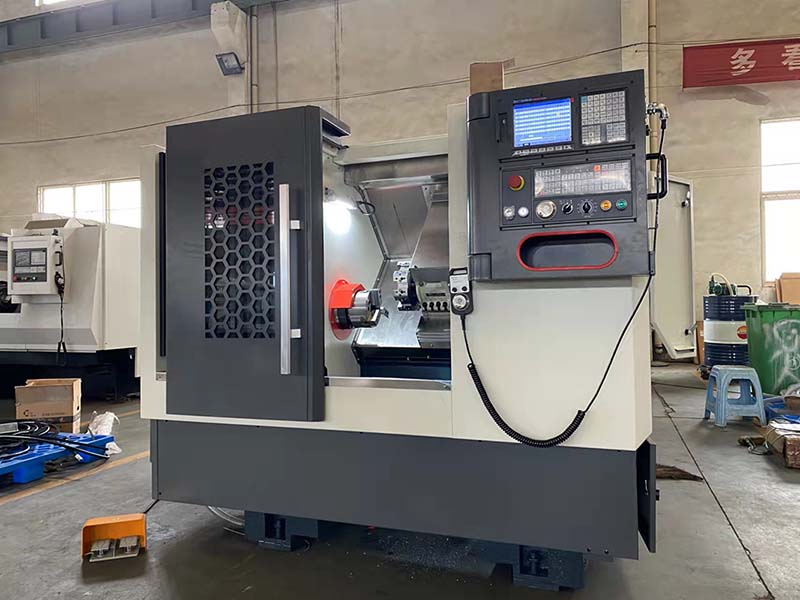

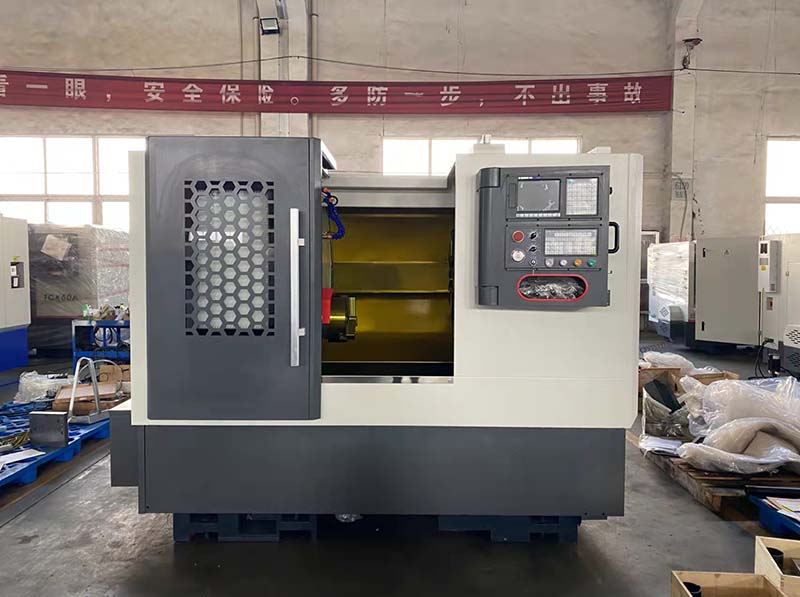

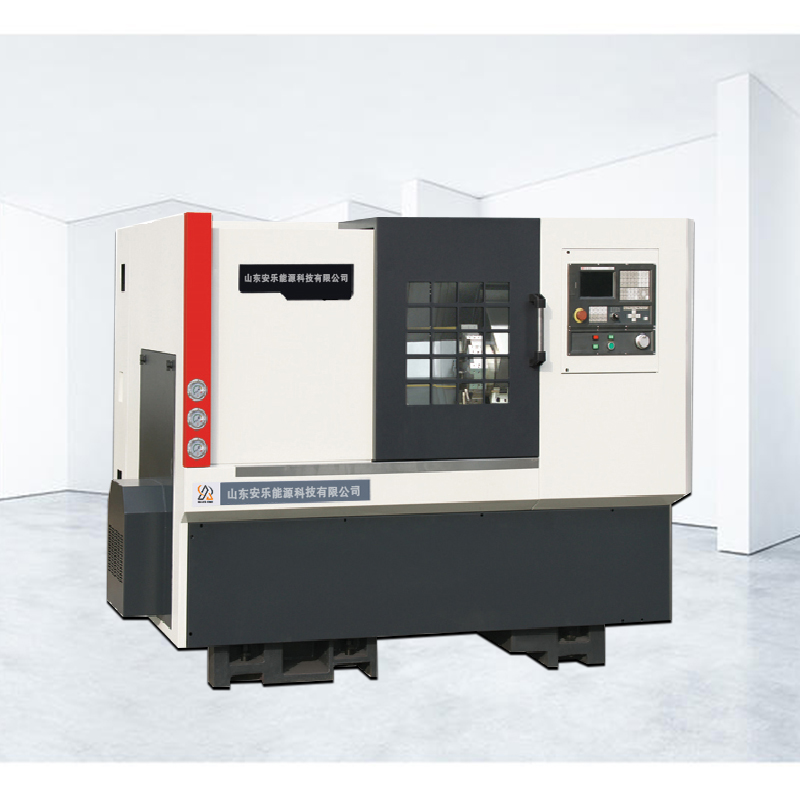

TCK50A cnc lathe slant bed machine

TCK50A cnc lathe slant bed machine

Product description:

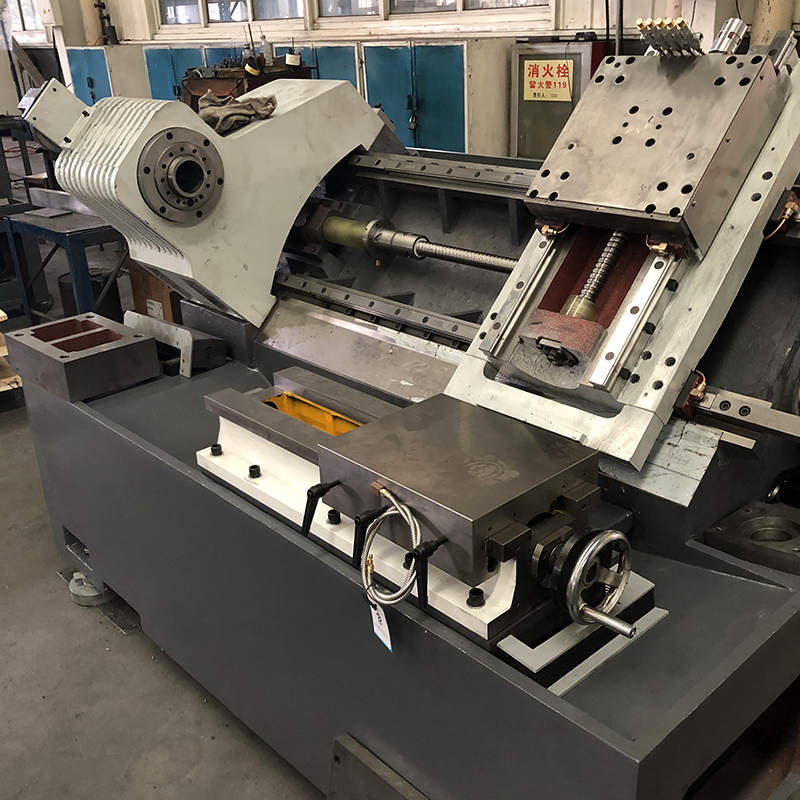

TCK50A slant bed cnc lathe machine seimens adopts sloping bed structure, which has strong rigidity and good shock resistance. TCK50A cnc lathe slant bed machine has the characteristics of high speed, precision, high efficiency, and turning complex parts of various shapes. TCK50A slant bed cnc lathe is suitable for batch processing of auto parts, motorcycle parts, valves and other parts.

Video:


Product Specifications:

Machine model	Unit	TCK50A
Maximum turning diameter of bed	mm	Φ560
Maximum turning diameter of cross slide	mm	Φ260
Maximum processing length	mm	330
Maximum machining diameter (disk type)	mm	Φ400
X axis maximum stroke	mm	240
Z axis maximum stroke	mm	400
Spindle speed	rpm	3000
Spindle through hole	mm	Φ66
Pull tube through hole	mm	Φ55
Fast moving speed	m/min	X:18 Z:18
Cutting feed rate	mm/min	1-15000
Spindle motor power	KW	11
Tool body size	mm	2525
Diameter of boring tool	mm	40
Sleeve diameter	mm	70
Sleeve stroke	mm	80
Maximum stroke of tailstock	mm	200
Total power capacity	KVA	18
Cutting water tank capacity	L	90
Dimensions (l×w×h)	mm	2500*1700*1890
Total Weight	KG	2600

Product advantages:

1. Adopt high-precision spindle bearing set and the spindle with precise assembly and dynamic balance test to ensure the spindle with high precision, low noise and strong rigidity.

2. Using the turret method, the tool change speed is fast and the positioning accuracy is high.

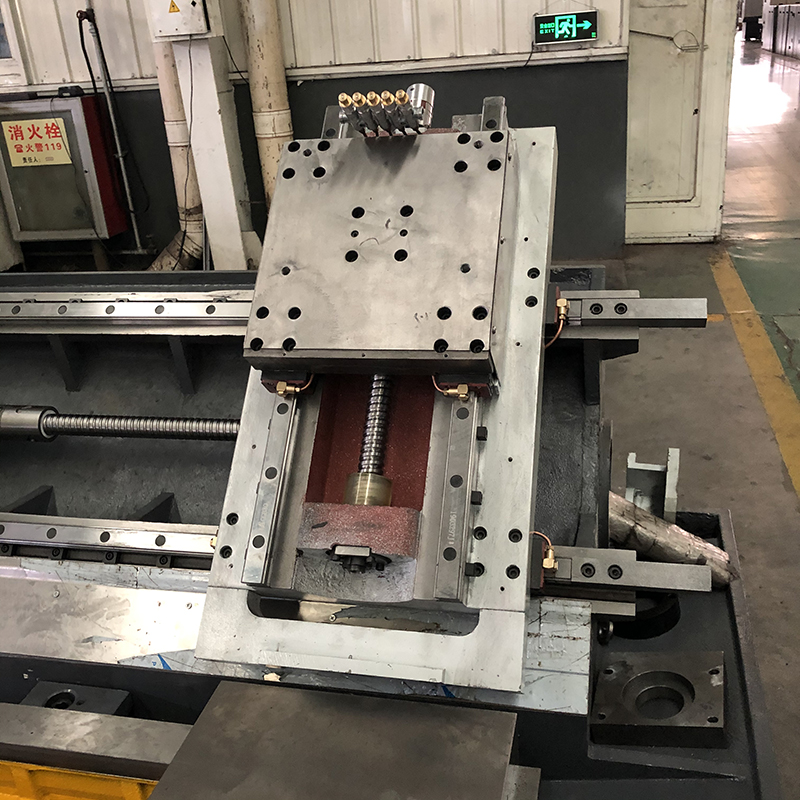

3. The feed in the X and Z directions is directly connected with the lead screw by the servo motor through the high torque and low inertia elastic coupling to ensure the positioning accuracy and repeated positioning accuracy.

4. Adopt advanced centralized automatic lubrication device, regular and quantitative automatic intermittent lubrication, stable and reliable work.
